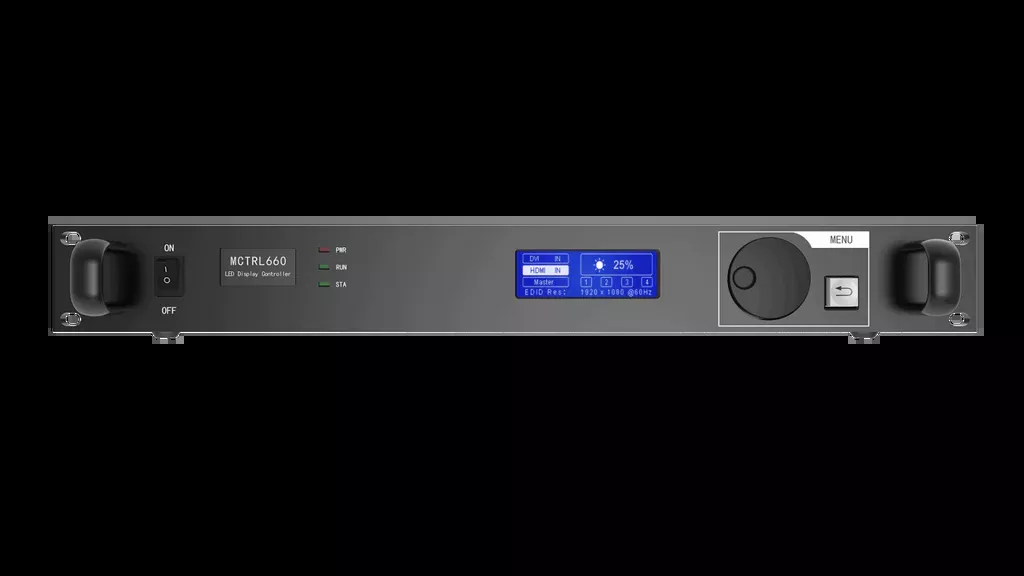

ADJ Novastar MCTRL660

MCTRL660 is a controller developed by NovaStar with a single-unit loading capacity of 1920×1200@60Hz. MCTRL600 utilizes UART to cascade and control multiple units. Suitable for a variety of applications, especially rental and fixed installations such as stage broadcasts, monitoring centers, sports arenas, and more.

True hot backup, No flickering, no blackout
One-button upload of settings and parameters

• 12bit/10bit HDMI input, DVI input
• HDMI.DVI loop output for cascading or monitoring
• HDCP Blue-ray directly input
• 8bit video source loading capacity of 1920×1200@60Hz.
• 12bit video source loading capacity of 1440×900@60Hz

Support for custom resolutions: 3840 pixels of H resolution, 3840 pixels of V resolution
Supports cascading for control of multiple units
Support for multiple signal formats: RGB, YCrCb4:2:2, YCrCb4:4:4
Certifications, CE, RoHS, FCC, UL, EAC

Features:

• 1 × DVI input
• 1 × HDMI input
• 4 × Gigabit Ethernet outputs
• Supports the new generation of NovaStar calibration technology, which is fast and efficient.
• Supports resolutions up to 1920×1200@60Hz and downward compatibility.
• Multiple controllers can be cascaded.
• Supports 18-bit grayscale processing and display.
• Manual screen brightness adjustment, which is fast and convenient.
• Quick screen configuration without using a computer.
• Adopts an innovative architecture to implement smart screen configuration, allowing a screen to be configured within 30 seconds and greatly shortening the stage preparation time.
• Adopts NovaStar G4 engine to realize a perfect display image with no flickering or scanning lines, as well as fine quality and good sense of depth.
• Supports a variety of video formats, as described in Figure 2-1.

Specifications:

Specifications:
Input

• DVI IN
• Single-link DVI connector
• Resolution up to 1920×1200@60Hz and downward compatible
• Custom resolutions supported:
• Resolution with maximum width: 3840×600@60Hz
• Resolution with maximum height: 800×2560@60Hz
• AUDIO
• Audio input connector
• HDMI IN
• HDMI 1.3 compliant
• Resolution up to 1920×1080@60Hz and downward compatible
• Custom resolutions supported:
• Resolution with maximum width: 3840×600@60Hz
• Resolution with maximum height: 800×2560@60Hz
• l Support HDCP 1.4.

Output

• RJ45 × 4
• 4 Gigabit Ethernet outputs
• Maximum loading capacity of a single Ethernet port: 650,000 pixels
• Support redundancy between Ethernet ports.

Control

• TO PC
• Type-B USB port for connecting to PC
• UART IN
• Input port for cascading devices
• UART OUT
• Output port for cascading devices. Up to 20 controllers can be cascaded.

Power

• AC 100V~240V-50/60Hz
