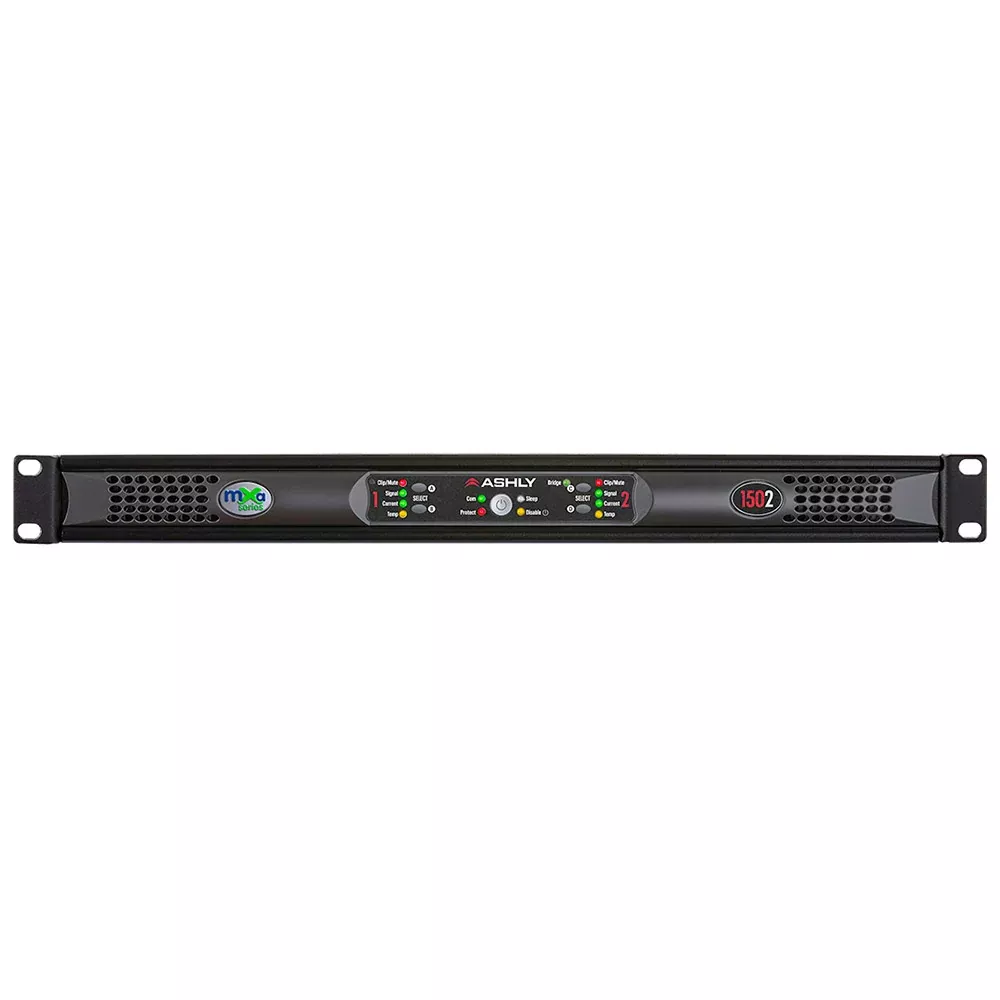

Ashly Audio mXa 1502 – 8-Input 2-Output Mixer Amplifier

The mXa-1502 with Ashly AquaControl software™ gives you multi-zone music distribution, paging, sound-masking and automatic mixing for a wide-range of environments. Process 12 audio inputs into four different areas with a single rack space device that includes two Ashly-reliable 150-watt amplifiers capable of driving 2,4 and 8-ohm as well as 25, 70 and 100V loads.

The mXa-1502 with AquaControl™ provides total control over four separate zones with a rich compliment of digital signal processing, including routing, automixing, ducking, amplifier monitoring, event scheduling/triggering and more. All through the easy-to-use AquaControl™ that doesn’t require a week of tutorials to understand and configure. It lets you and your customers navigate using virtually any browser-enabled device. Trouble-shoot or re-configure it without having to travel to the client location. Or add the hard-wired WR-1.1 single-gang remote.

Features:

• 8-balanced Mic/Line Inputs
• Precision Class A mic preamp design
• 4 Stereo Line Inputs
• 4 Outputs
• 2 x 150W Class D Amplifiers with selectable Multi-mode operation (2/4/8 Ohm + 25/70/100V)
• Four convenient front-panel buttons for source/preset select
• Scheduler and RTC (Real-Time Clock) allows user-defined automatic, timed activation of various operations
• Generous integration I/O, including: Network, Serial, GPIO, VC, Standby & Fault (works with the WR-1, WR-1.1, WR-1.5, and WR-2 remotes)
• Compact 1U design reduces rack space requirements
• New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install!

Comprehensive DSP includes:

Inputs

• Programmable Analog Mic Preamps
• Phantom Power On/Off
• Gain with Link Group Assign and Polarity switch
• Remote Gain
• DVCA Gain
• Meter with Peak Hold Equalizers
• 31-band Graphic – Constant or Proportional Q
• 10-band Parametric EQ + HPF / LPF
• Signal Generator
• Delay

Dynamics

• Compressor
• Auto Leveler
• Clip (Brick Wall Limiter)
• Gate
• Anti-Feedback (AFC) Mixer 1-4
• Matrixing
• Automixers
• Ducker

Outputs

• 31-band Graphic – Constant or Proportional Q
• 10-Band Parametric
• FIR Filters
• 2/3/4-way Crossover
• Ambient Noise Control
• Delay
• Dynamics (same as Inputs)
• Signal Generator
• Meter with Peak Hold

Event Scheduler (Calendar)
Event Logs
Reports

Compatibility

• Windows® OS 10
• Mac® OS 10 and later
• Linux Web Browsers
• Chrome for Windows®, OS X, iOS, Android®
• Safari for OS X
• Edge for Windows®
