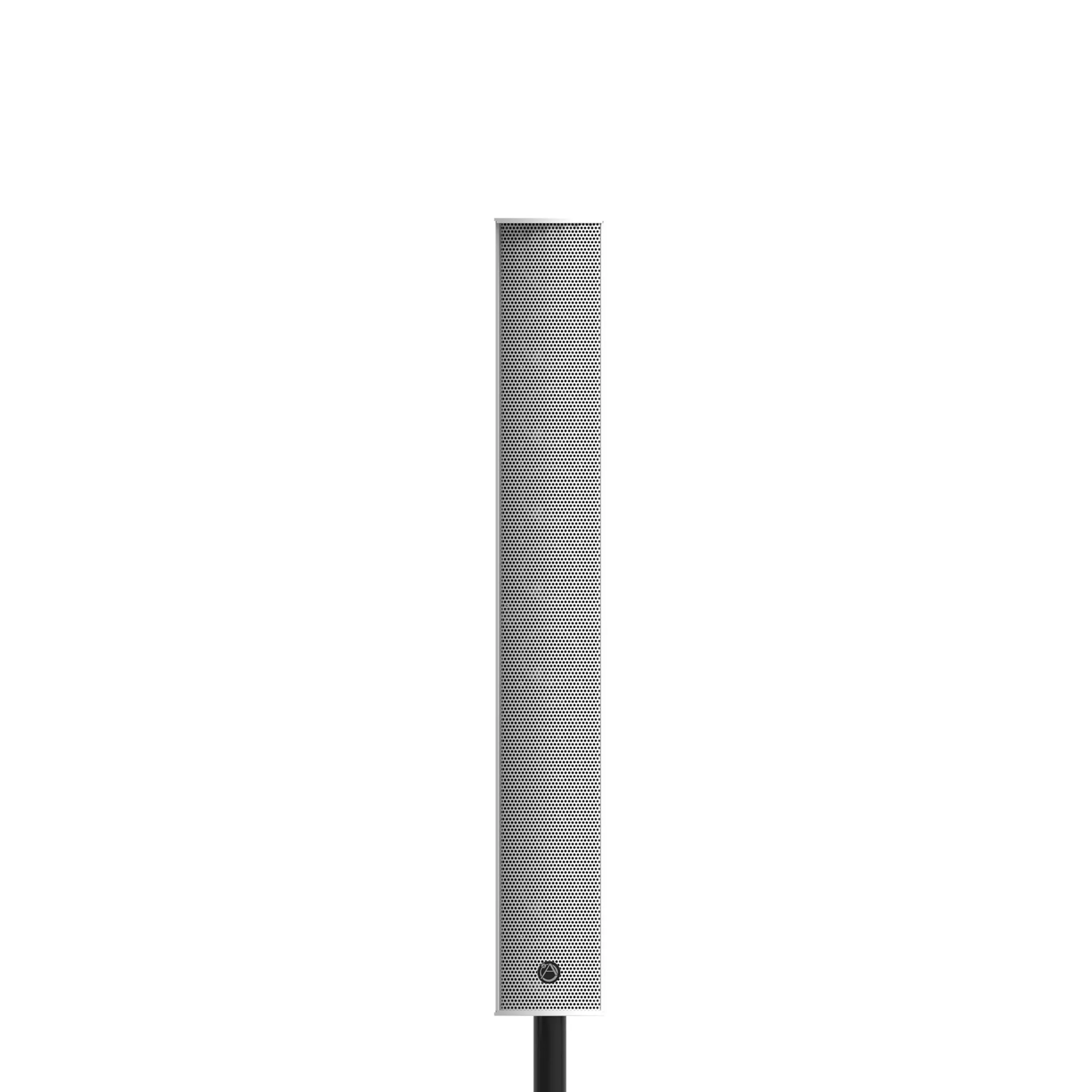

Atlas Sound ALA10T Full Range Line Array 10 Speaker System, Silver

Atlas Sound ALA10T Full Range Line Array 10 Speaker System, Silver

The ALA10Tcolumn line array speaker delivers maximum performance in a minimum footprintand excels in applications that require excellent speech intelligibility. TheALA10T’s transducer configuration combines ten tight packed 3″ full rangedrivers and four 25mm high frequency tweeters in an extruded aluminum housingto offer both durability and optimum sound reproduction. The lightweight andeasy to install enclosure has contemporary aesthetics that are a compliment toany environment. The back of the enclosure incorporates vertical channels thataccept the included wall mount allowing the installer to slide the mount to thelocation that provides the desired vertical tilt. An optional pole mountbracket enables the array to be used in portable applications coupled with ourA-Line subwoofer.

Key Features

• Use In FixedInstall or Portable Applications
• 135Horizontal Coverage
• 40 VerticalCoverage
• 70.7V Or 8Operation
• Ten (10)Proprietary 3″ Full Range Transducers
• Four (4)High Frequency Tweeters
• BarrierStrip And NL-4 Terminals
• LightweightAluminum Housing
• IP32Environmental Rating
• Wall MountBracket Included
• Pole MountAccessory Sold Separately

TechnicalSpecifications

70.7V POWER TAPS
7.5, 15, 30,& 60 Watts
DISPERSION
135 H x 40V
SENSITIVITY
96dB 1W/1m
FREQUENCY RESPONSE
125Hz -20kHz
HEIGHT
32.9″(835.7mm)
DEPTH
5.43″(137.9mm)
WIDTH
4.61″(117mm)
