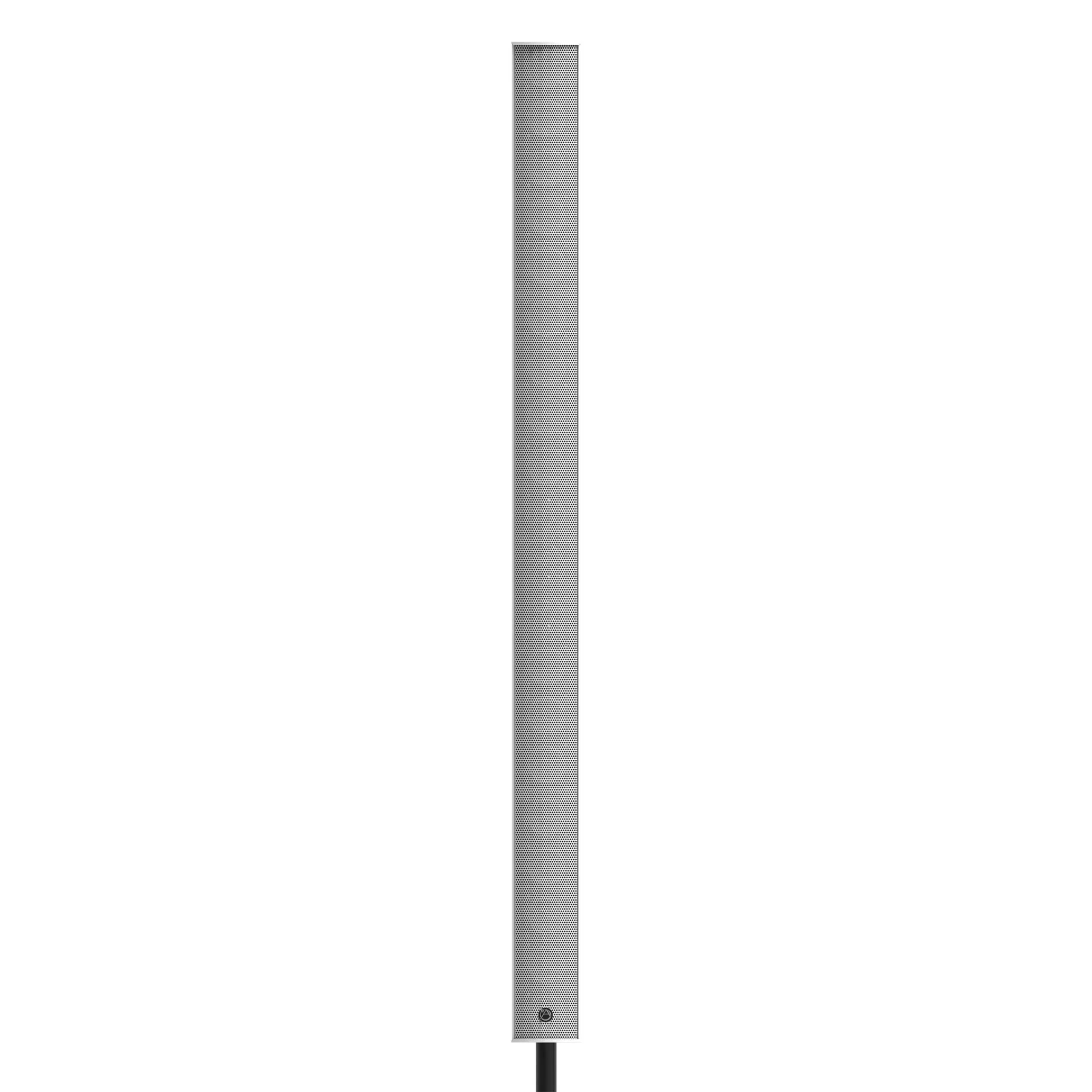

Atlas Sound ALA20T Full Range Line Array 20 Speaker System, Silver

Atlas Sound ALA20T Full Range Line Array 20 Speaker System, Silver

The ALA20Tcolumn line array speaker delivers maximum pattern control performance in aminimum footprint and excels in applications that require excellent speechintelligibility. The ALA20T’s transducer configuration combines twenty tightpacked 3″ full range drivers and six 3/4″ high frequency tweeters inan extruded aluminum housing to offer both durability and optimum soundreproduction. The lightweight and easy to install enclosure has contemporaryaesthetics that are a compliment to any environment. The back of the enclosureincorporates vertical channels that accept the included wall mount allowing theinstaller to slide the mount to the location that provides the desired verticaltilt. An optional pole mount bracket enables the array to be used in portableapplications coupled with our A-Line subwoofer.

Key Features

• TwentyProprietary 3″ Full Range Drivers
• 135Horizontal Coverage
• 40 VerticalCoverage
• SixHigh-Frequency Tweeters
• BarrierStrip and NL-4 Terminals
• LightweightAluminum Housing
• MountingSystem Included

TechnicalSpecifications

8 RMS POWER
500 Watts
70.7V POWER TAPS
7.5, 15, 30,& 60 Watts
DISPERSION
135 H &40 V
SENSITIVITY
97dB 1W/1m
FREQUENCY RESPONSE
90Hz – 20kHz
HEIGHT
65.75″(1670mm)
DEPTH
5.43″(137.9mm)
WIDTH
4.61″(117mm)
