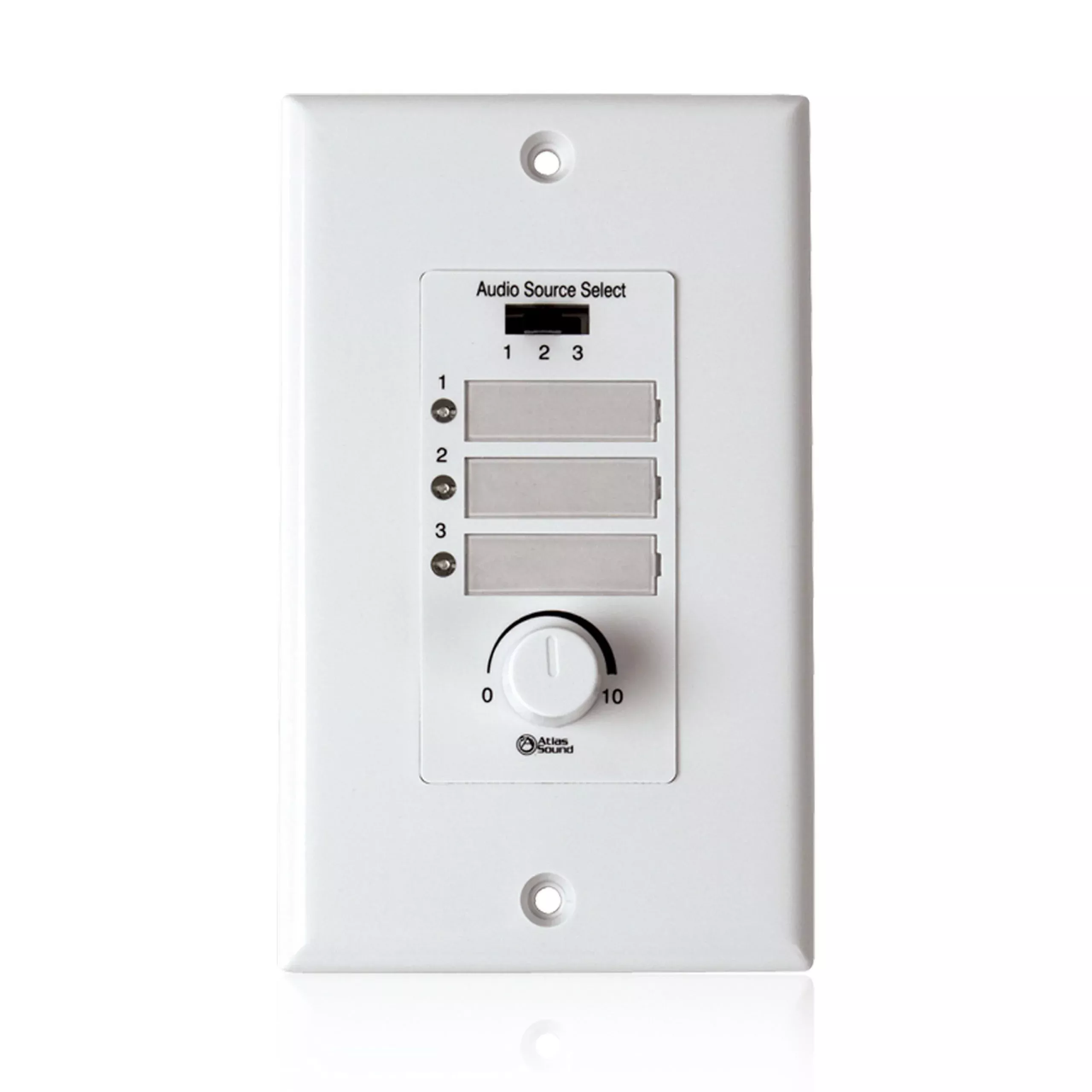

Atlas Sound WPD-RISRL Wall Plate Input Select Switch with Volume Control

Atlas Sound WPD-RISRL Wall Plate Input Select Switch with Volume Control

TheWPD-RISRL is a decor style wall plate that is designed for use with theAA50PHD, AA100PHD, AA200PHD, or AA400PHD mixer amplifiers to use the remoteinput selection (RIS) feature. TheWPD-RISRL features an audio source slide selector as well as a source volumecontrol. The unit includes an LEDindicator to indicate which source is selected and if it is active. The unit fits in a single gang electricaloutlet and uses an 8-conductor interface connection that includes a single 4position removable Phoenix connector and dual 2 position Phoenix styleconnectors. When connected to the RISoutput on an appropriate AAPHD amplifier, the WPD-RISRL allows for remoteselection and volume adjustment of inputs 2, 3, and 4 allowing the rack toremain locked and secured.

Key Features

• Designed forRemote Input Selection and Volume Adjustment Used with Select AAPHD Amplifiers
• Input SelectSlide Switch
• Level ControlVia On Board 10k Potentiometer
• SystemStatus Indicator (Red)
• 8-ConductorInterface Connection
• Label Guard

TechnicalSpecifications

Height
4.5″(114mm)
Width
2.5″(63mm)
Depth
0.24″(6.4mm)
