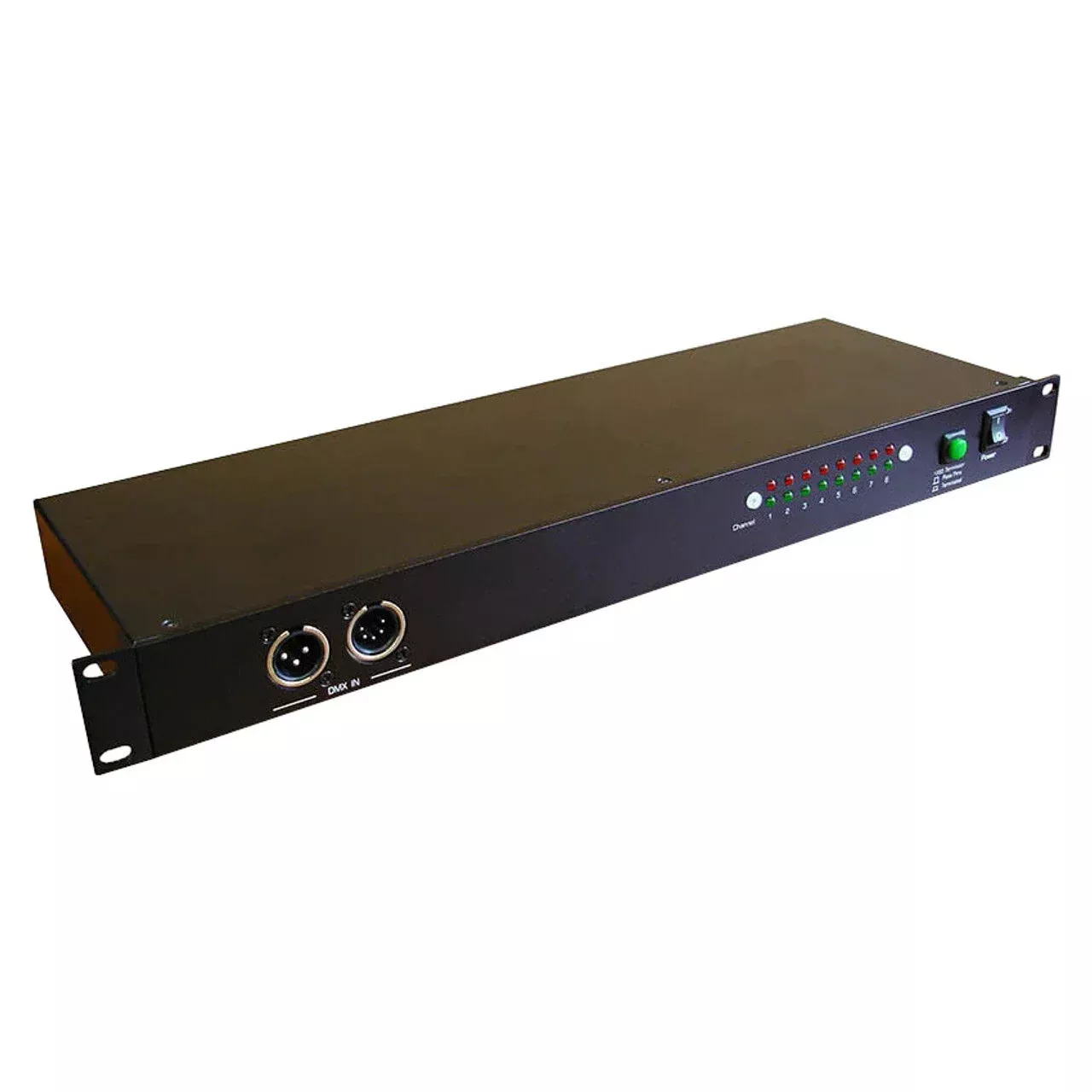

Blizzard Lighting Pipeline 8-Way DMX Distributor

The Blizzard Lighting Pipeline 8-Way DMX Distributor efficiently manages complex lighting systems by splitting a DMX signal into multiple isolated outputs, amplifying it for long cable runs, and ensuring signal integrity. The unit features two inputs and eight outputs, each with independent drivers that allow users to connect up to 32 fixtures per output channel. Absolute electrical isolation between inputs/outputs and between all outputs minimizes interference, making it a reliable solution for professional lighting applications. The device fits into standard 19-inch equipment racks and has a durable, anodized aluminum front panel. Read more

Features

• DMX512 (1990) compliant: Works with vast array of DMX gear.
• Dual DMX connection types: Has both 3-pin and 5-pin connectors.
• Total electrical isolation: Safeguards gear from stray current.
• Individual signal drivers: Boosts DMX signal for extended cable runs.
• Connects many fixtures: Up to 32 units per one output channel.
• Handy troubleshooting: Signal and power LED indicators for each output.
• Terminator switch: Resistor button for last unit in DMX chain.
• Versatile mounting: Removable rack wings for rack or wall mount.
