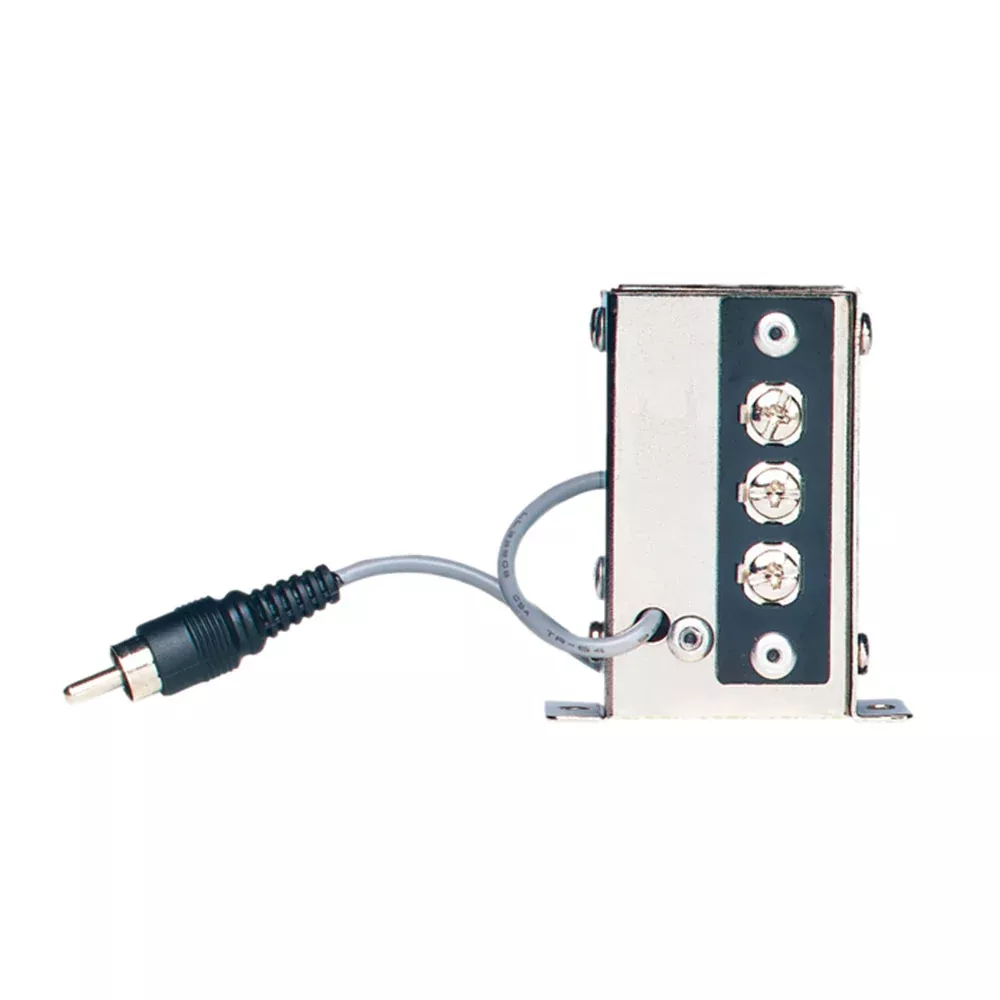

Bogen WMT1AS Line Impedance Matching Transformer

The WMT1AS has all the features and functions of the WMT1A, but can also adapt speaker-level signals (25V/70V systems) to a level suitable for the AUX input of an amplifier.

The Bogen WMT1A transformer is designed especially for impedance-matching inputs from, or outputs to, a 600-ohm line. It has a Hi-Z, 10k-ohm primary impedance and a Lo-Z, 600-ohm secondary impedance balanced with a center tap. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line (typically for “music-on-hold” applications). It is compatible with any amplifier having a 25V output terminal.

Features:

• Hi-Z, 10k-ohm primary impedance
• Lo-Z, 600-ohm secondary impedance, balanced with center tap
• Matches high-to-low impedance or low-to-high impedance
• Adapts line-level signals to microphone inputs
• RCA connector for Hi-Z side
• Screw terminals for Lo-Z side
• Small steel enclosure with mounting ears allows easy mounting
• No wiring or soldering required
• May be used to provide a 600-ohm output from a Bogen mixer/pre-amplifier
• Can also adapt speaker-level signals to the AUX input level of an amplifier
