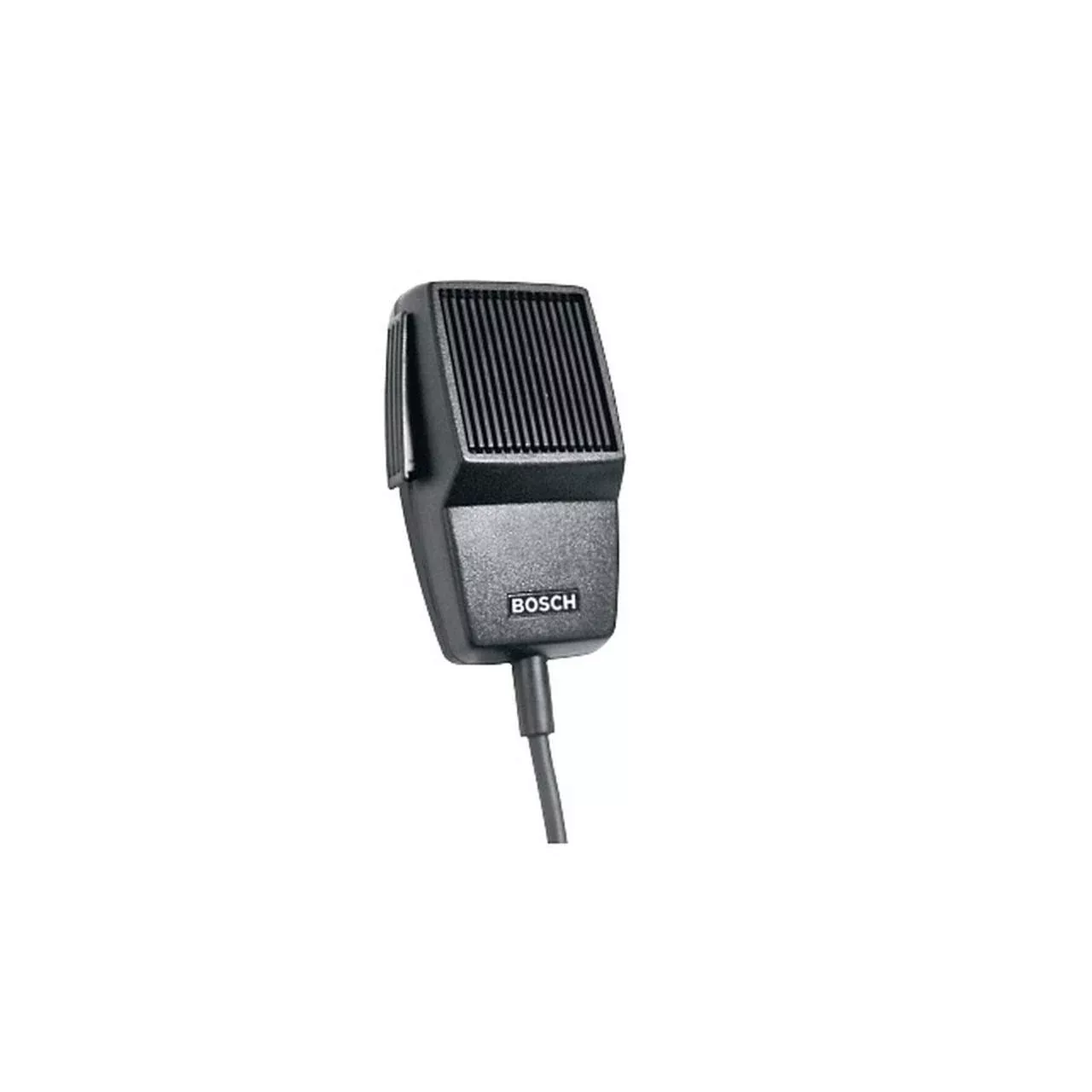

Bosch LBB9080/00 Omnidirectional Dynamic Handheld Microphone

Bosch LBB9080/00 Omnidirectional Dynamic Handheld Microphone

The LBB 9080/00 handheld microphone is designed for close talkingapplications, and is ideal for short announcements.

Key Features

• Excellent speech reproduction
• Rugged construction
• Easy to handle
• Remote switching contact
• Close talking applications

Technical Specifications

Electrical
Type
Handheld
Polar pattern
Omnidirectional
Frequency range
280 Hz to 14 kHz
Sensitivity
3.1 mV/Pa -,+ 4 dB
Rated output impedance
500 ohm
Mechanical
Dimensions (H x W x D)
103 x 62 x 43 mm
(4.05 x 2.44 x 1.69 in)
Weight (incl. cable)
190 g (6.7 oz)
Color
Black
Switch
On/off with remote control contact
Cable type
2-core + 2-core screened (coiled)
Cable length
0.5 m (1.2 m extended)
Connector
5-pin 180 degrees DIN (lockable)
Environmental
Operating temperature
-25 degrees C to +55 degrees C (-13 degrees F to +131 degrees F)
Storage temperature
-40 degrees C to +70 degrees C (-40 degrees F to +158 degrees F)
Relative humidity
<95%
