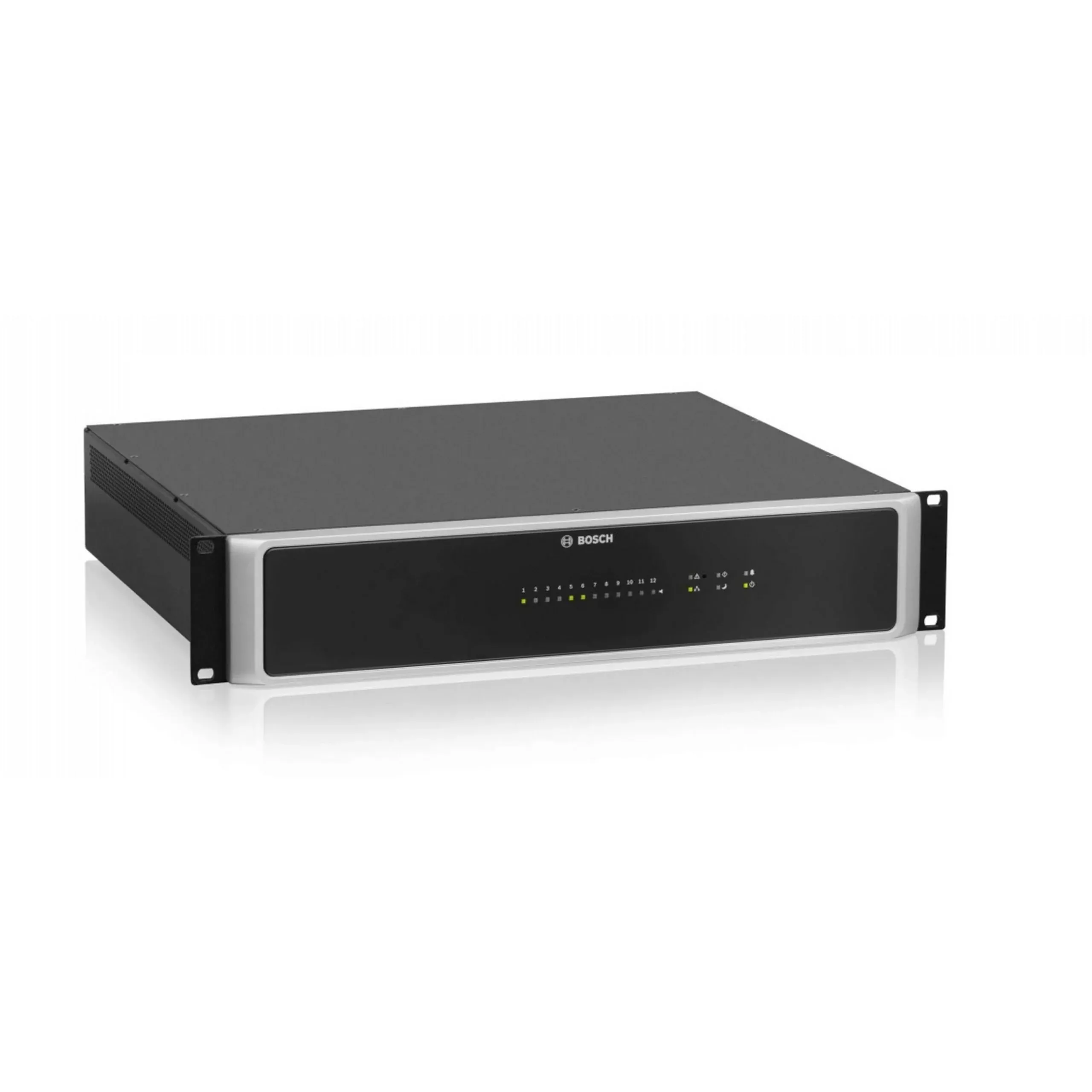

Bosch PVA-4CR12 PAVIRO Central Paging Matrix Controller
ThePVA-4CR12 controller is the central paging manager for the PAVIRO system. Eightlocal audio inputs can be switched to four audio outputs. A two channel messagemanager is integrated. The controller provides all the audio processing,supervision and control functions for a complete PAVIRO system. A singlecontroller supports up to 16 call stations and 492 paging zones. The controlleris equipped with 12 zones, 18 GPIs and 19 GPOs.
Key Features
- Low powerconsumption in standby mode
- Extremeflexibility
- Excellentsound quality>106 dB s/n ratio
- Up to 85minutes internal digital message storage
TechnicalSpecifications
Product dimensions (Width x Height x Depth)
19”, 2 HU, 483 x 88.2 x 391mm
Net weight
8.0 kg
Shipping weight
9.5 kg
