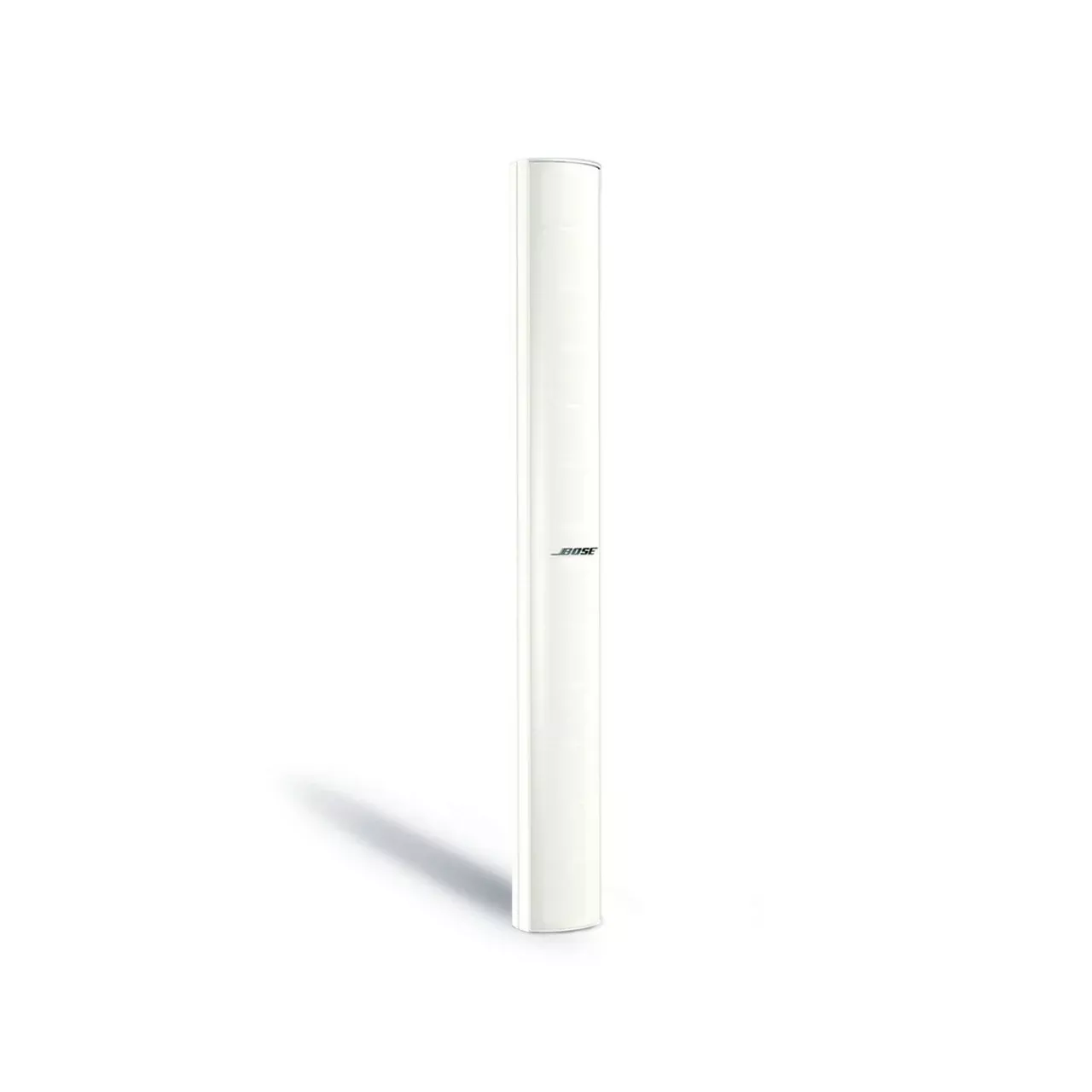

Bose Panaray MA12 Modular Line Array Loudspeaker White

Bose Panaray MA12 Modular Line Array Loudspeaker White

Wide 145 horizontal coverage. Designed to provide outstanding vocal intelligibility in acoustically demanding spaces. Slim column enclosure blends with almost any decor.

Key Features

• Twelve 2.25″ (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
• Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
• 145 horizontal x 20 nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration
• Mid/high configuration allows bass management and design flexibility. Use with Bose MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement
• Optional brackets allow easy installation of single-, double- or triple-stack line array modules

Technical Specifications

Frequency Response (+/-3 dB)
155 Hz – 12 kHz
Frequency Range (-10 dB)
100 Hz – 16 kHz
Nominal Dispersion
145 H x 20 V
Long-Term Power Handling
300 W (1200 W peak)
Sensitivity (SPL / 1 W @ 1 m)
88 dB SPL
Maximum SPL @ 1 m
113 dB SPL (119 dB SPL peak)
Nominal Impedance
8
