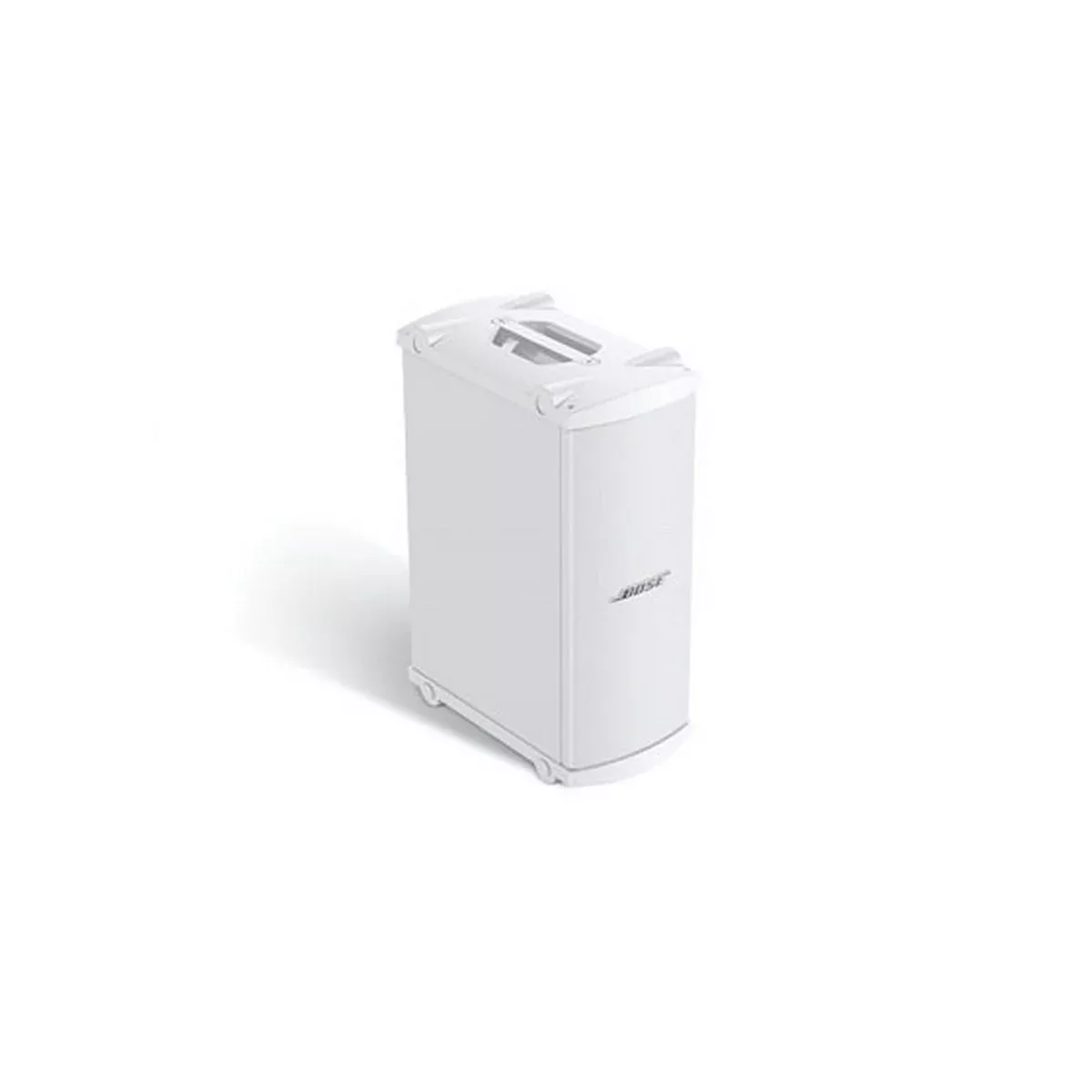

Bose Panaray MB4 Compact Modular Bass Module White
Compactlow-frequency loudspeaker designed primarily to provide bass augmentation forBose Panaray and DS systems in small to medium-size indoor permanentinstallations. It can also be used as portable sound reinforcement.
Key Features
- Unique 4 x5.25″ (133 mm) high-excursion woofer configuration provides deep bass to35 Hz with fast transient response
- Modulardesign allows stacking of multiple enclosures for increased maximum soundlevels
- Integratedsuspension inserts allow easy permanent installations with optional riggingaccessories
TechnicalSpecifications
Frequency Response (+/-3 dB)
45 Hz – 310Hz
Frequency Range (-10 dB)
35 Hz – 350Hz
Nominal Dispersion
Omni-directionalbelow 200 Hz
Long-Term Power Handling
200 W (800 Wpeak)
Sensitivity (SPL / 1 W @ 1 m)
87 dB SPL
Maximum SPL @ 1 m
110 dB SPL(116 dB SPL peak)
Nominal Impedance
8
