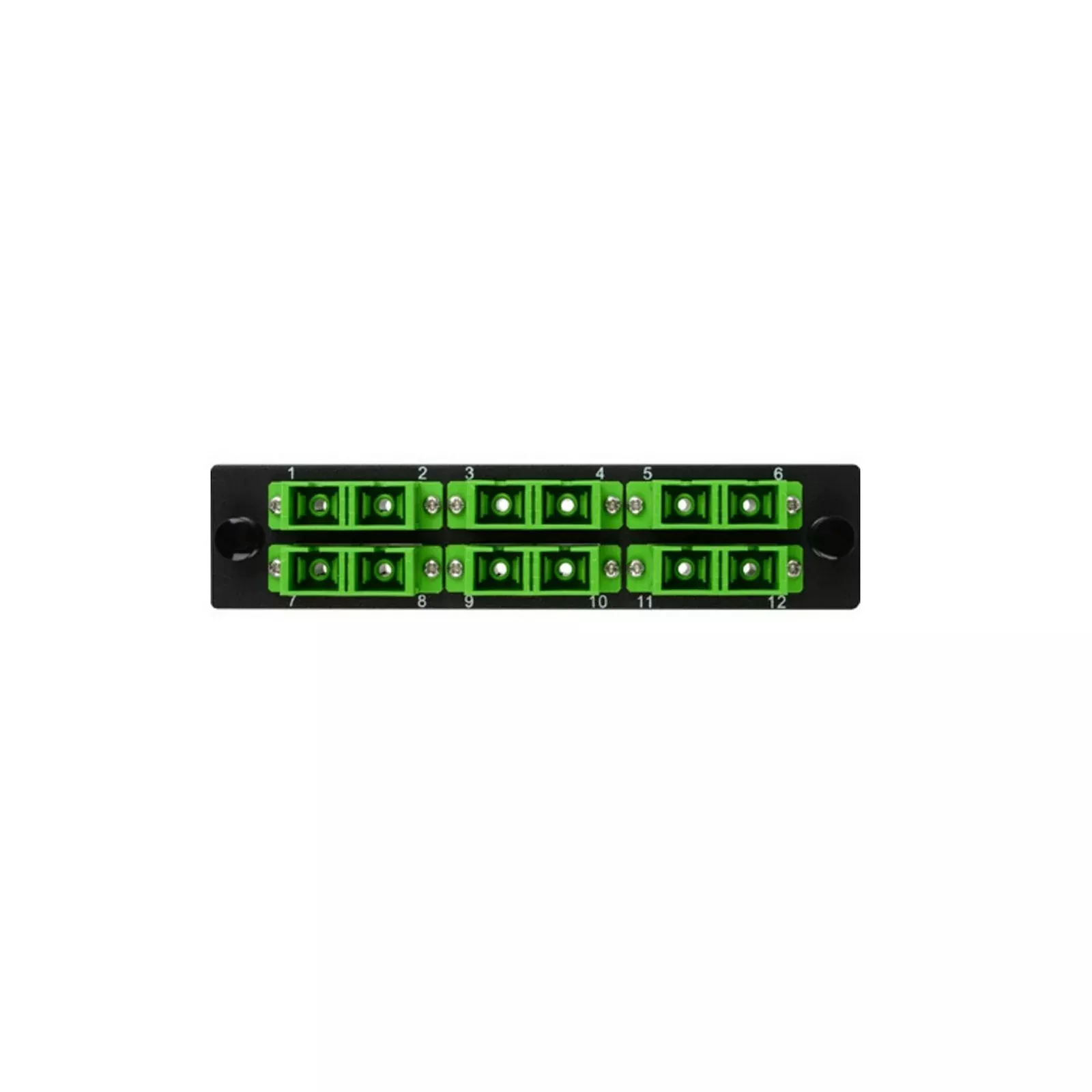

Camplex CMX-MP12SCDA 6 Port 12 Fiber Adapter Plate Module

Camplex CMX-MP12SCDA 6 Port 12 Fiber Adapter Plate Module

The CMX-MP12SCDA adapter plate module quickly pops in and out of any Camplex MP series rackmount or wall box enclosure and delivers six duplex (12 fibers total) feed-thru patch points for APC SC singlemode fiber.

Adapter plates mount in a tool-less fashion with “push-pin” locking mechanisms. Mix and match a variety of Camplex MP adapter plate modules with any MP series frame to easily expand your truck and studio fiber port needs.

Key Features

• Singlemode Plates are Multimode Compatible
• Designed for Camplex CMX-MPR Rack Mount Enclosures
• 12 Fiber, 6 Port Capacity
• SC APC Duplex Connectors
• Corrosion Resistant Black Powder-Coated Aluminum Plate
• Dimensions: 5.125 x 0.0625 x 1.125 in / 5.125 x 1.5 x 1.125 in (with connectors)
• Weight: 3 oz
