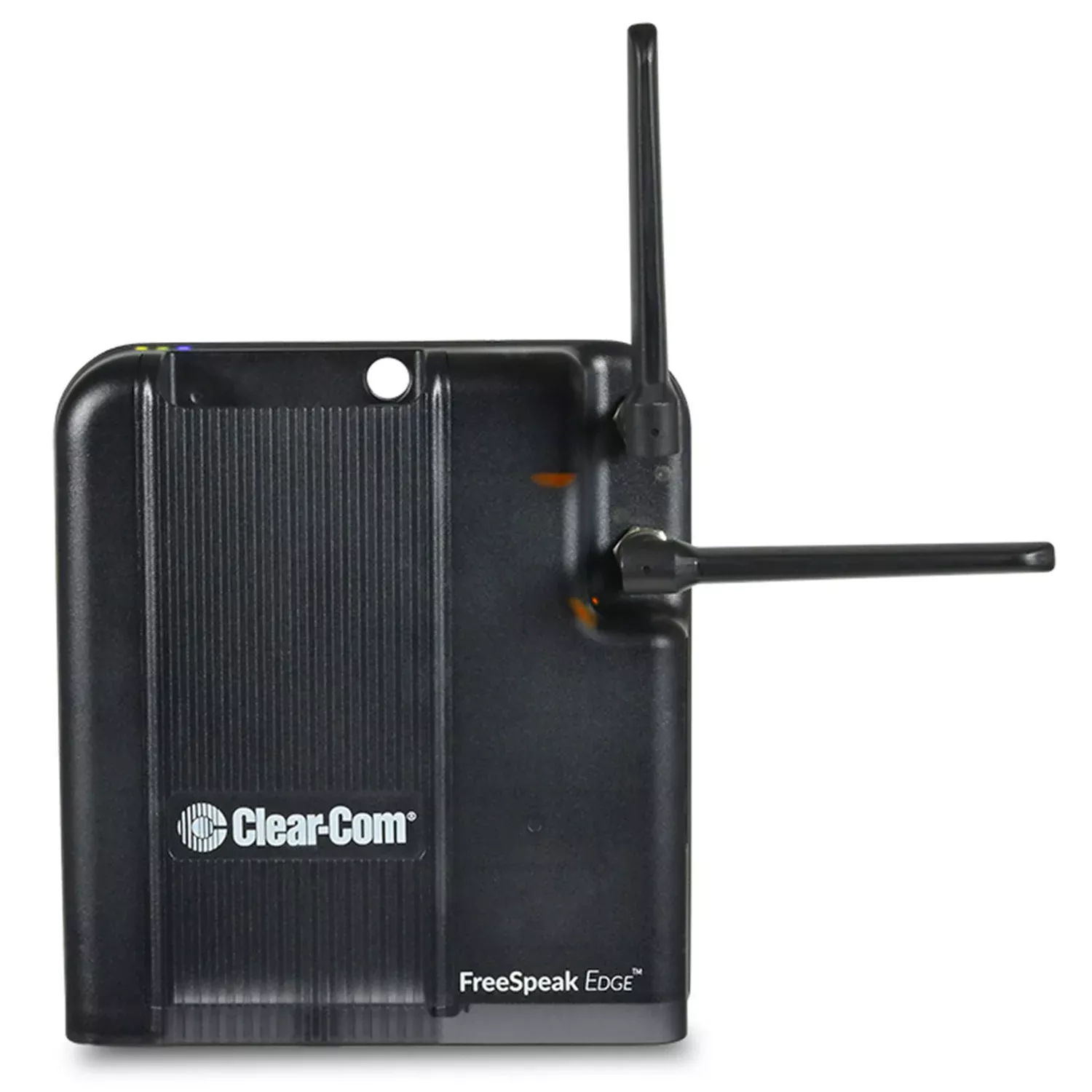

Clear-Com FSE-TCVR-50-IP-US – Active Transceiver for FreeSpeak Edge Intercom

FreeSpeak Edge IP connected Transceiver (E-IPT) for the FreeSpeak Edge digital wireless system. Connects up to 10 FS Edge beltpacks. Requires licensed and available ports on the E-IPA-HX card in the Eclipse-HX matrix and an AES67 compliant network connection. The transceiver can be powered from an AES67 compliant network switch PoE or from a local PSU adapter, supplied. RJ-45 and Fiber SFP LAN connections are provided. Fiber transceivers are not supplied see SFP-SMFO-1G-S (Single Mode) or SFPMMFO-1G-LX (Multi-Mode) Fiber transceivers.

Please note: SFP modules can vary in electrical capabilities despite being mechanically compatible. Clear-Com can only support Clear-Com supplied SFP transceivers which have been tested with Clear-Com products. FCC approved for use in the USA and Canada.

Features:

• Transceiver
  • LED status indicators on top and bottom of transceiver
  • External omnidirectional antennas for the transceiver
  • Dual redundant radios per beltpack and transceiver
  • Separate radios for RF and radar scanning
  • Wall-mount plate
  • Microphone stand mounts (metric and imperial threads)
  • Tripod spigot mount
• Connectivity
  • Supports 10 FreeSpeak Edge beltpacks per transceiver
  • Supports up to 64 transceivers on an Eclipse HX matrix system with 64 port E-IPA-HX card
  • Robust radio link works in high multipath or reflective environments
  • Wi-Fi coexistence
  • Standalone mode for site survey and demo
  • AES256 shared key encryption
  • Dual network connections
  • etherCON RJ45 network connection
  • High speed SFP fiber cage
  • Power-over-Ethernet (PoE) up to 330ft (100m)
  • Daisy-chaining up to three locally powered transceivers
• Mechanical
  • IP53 rating for wet and dusty conditions

The FSE-TCVR-50-IP is an active IP transceiver antenna for the FreeSpeak Edge wireless system. The transceiver delivers duplex communications from the Eclipse¨ HX matrix system via the E -IPA-HX interface card to the FreeSpeak Edge beltpacks. Each transceiver can support up to ten FSE-BP50 beltpacks. When supported with an E-IPA-HX card with 64 licensed ports, up to 64 FreeSpeak Edge beltpacks and 64 transceivers can be deployed with one Eclipse HX matrix system.
