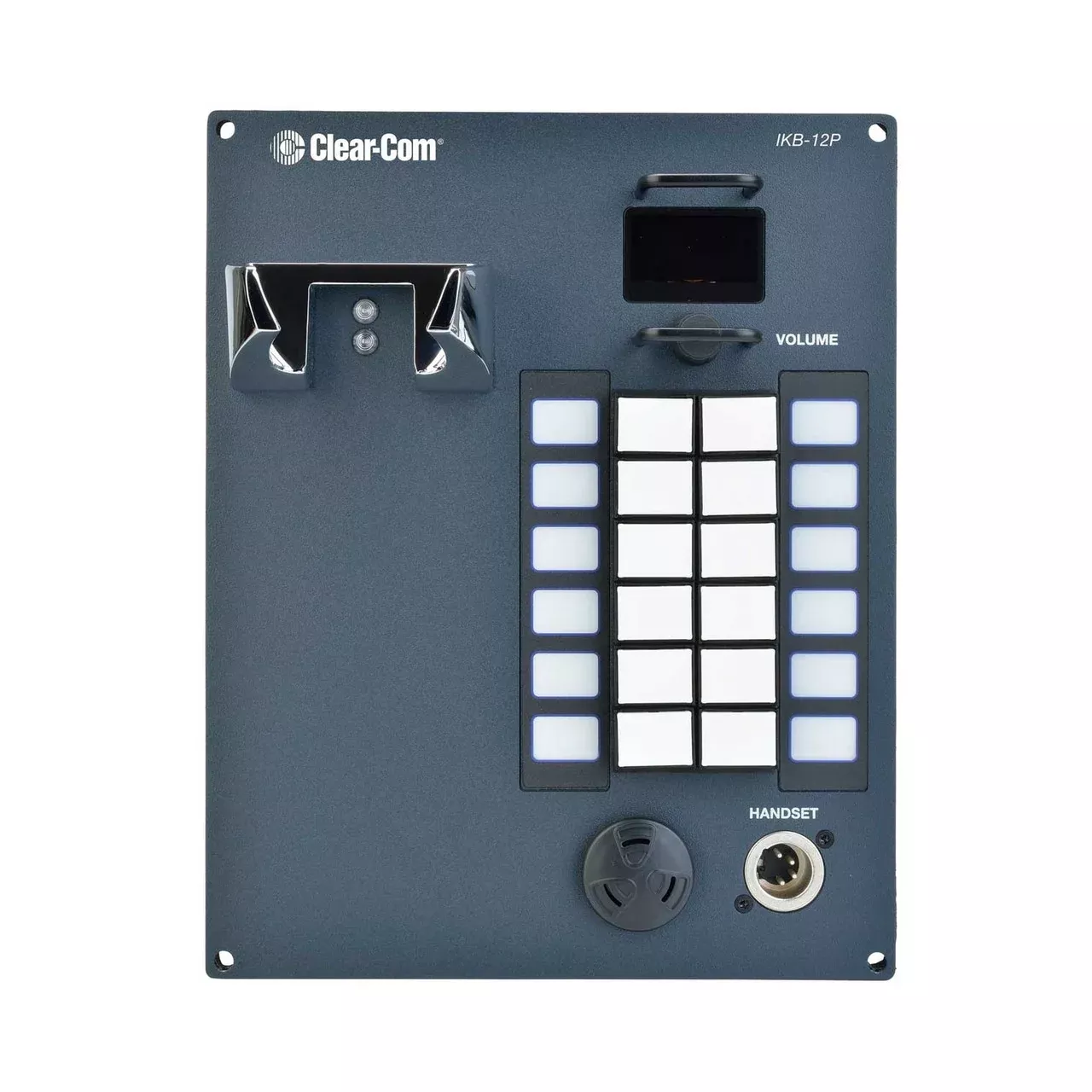

Clear-Com IKB-12P Industrial 12 Push Button KB Station

Clear-Com IKB-12P Industrial 12 Push Button KB Station

Industrial 12 pushbutton KB station forindustrial intercom use. Comes with 12 alerting buttons, buzzer, menu displayand handset cradle with optical off-hook switch. The price does not include theoptional HS-6D handsets fitted with an XLR-4 connector. The price includes a3year warranty.

Key Features

• Single-Channel Intercom Station with LoudAlert Buzzer
• Up to 64 intercom stations per system
• Configure up to 40 call buttons perstation*
• Plug-and-go installation with hardwarediscovery
• Audible and visual call signaling
• Web-browser configuration editor
• IP-65 rating

Technical Specifications

Connectors
Handset
4-pin male XLR
Ethernet/PoE
RJ-45
EarphoneAmplifier
LoadImpedance
>32 Ohms
OutputLevel
+1 dBu before clipping
Sidetone
-6dB (selectable)
Specifiedfor a route from a 4-wire input @0dBu in
MaxGain
12dB
Noise
<-65dBu (@ max gain)
HeadphoneLimiter
-0dBu, Selectable
Environmental
-14F to +131F (-10C to +55C)
Humidity
0 – 95%, relative
Weight
27.9 oz (0.79 kg)
Dimensions
10 x 8 x 3.6 in (HxWxD)
(254 x 203 x 93 mm)
