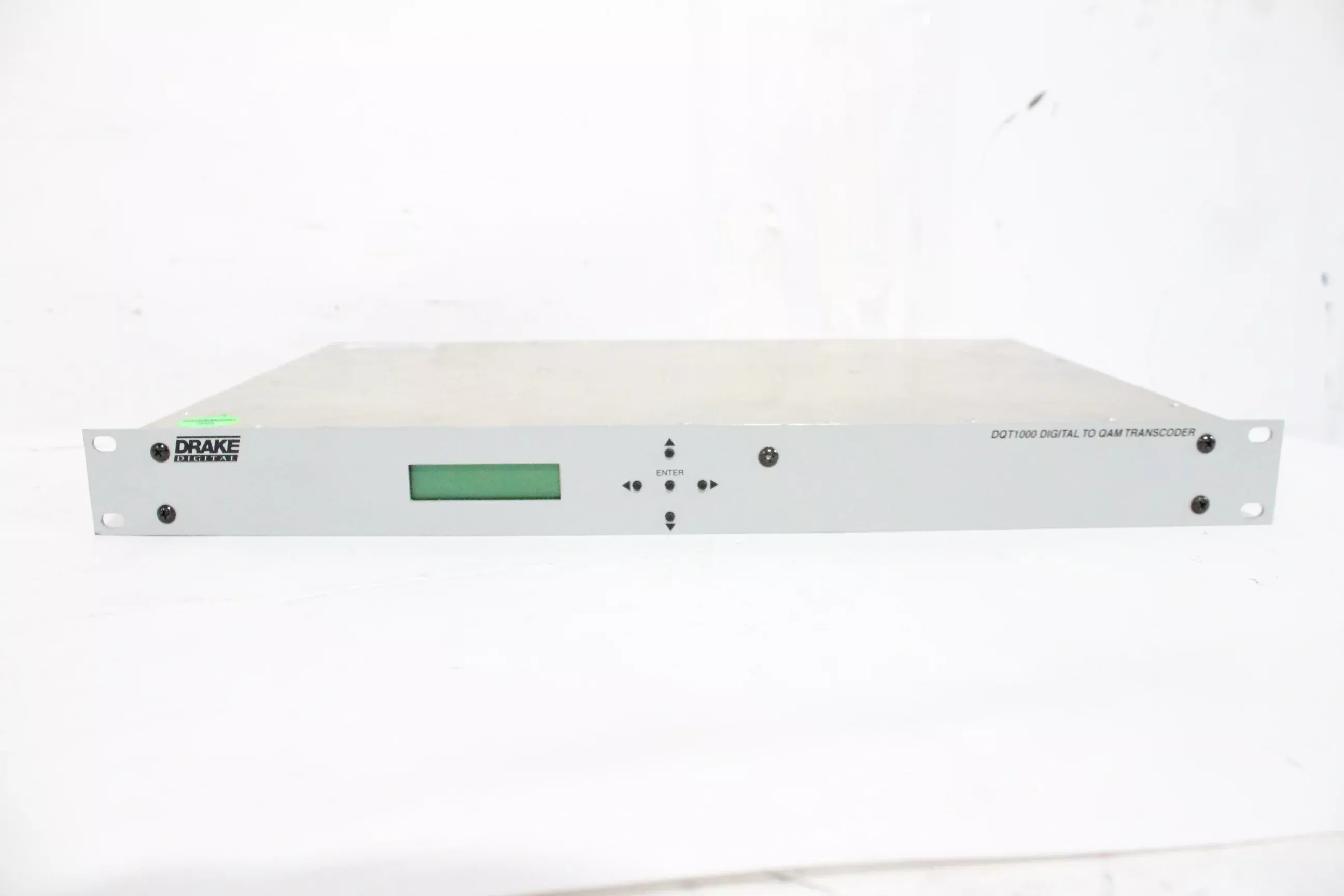

Drake Digital DQT1000 Digital to QAM Transcoder

The R.L. Drake model DQT1000 is a professional quality, digital headend transcoder product that tunes and demodulates MPEG2 or H.264 encoded VSB or QAM modulated signals from an off-air broadcast or CATV source or accepts an ASI input source. After error correction, it remodulates and upconverts the recovered MPEG2 transport stream onto a new QAM modulated digital output channel. Read more

Features

• Input Frequency Range: 54 to 864 MHzChannel Plans (Menu selectable): Std. CATV, HRC, IRC, or BroadcastInput RF Level Range: Input RF Level Range:Noise Figure: Less than 12 dBAdjacent Channel Rejection: 60 dB
