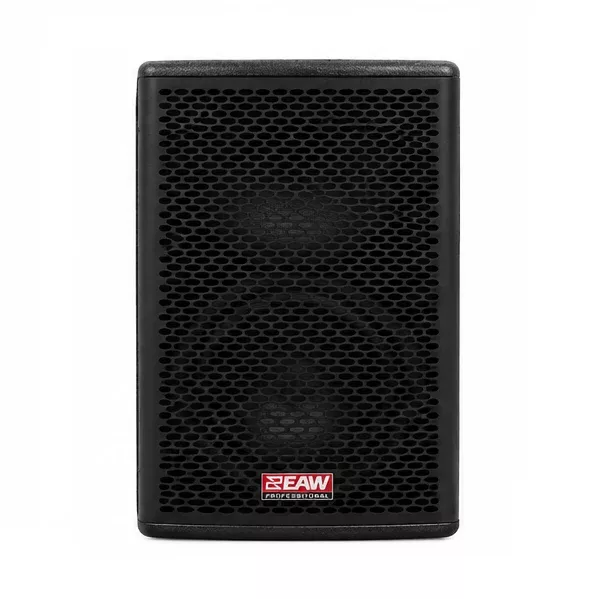

EAW JF8 2-Way Full Range Passive Loudspeaker

The EAW JF8 is a high-performance, two-way passive loudspeaker system housed in a vented, trapezoidal enclosure constructed from 15mm thickness void-free cross-grain-laminated Baltic birch plywood. This design choice and extensive internal bracing make the unit durable and reliable for both portable use and permanent installations. The loudspeaker incorporates an 8-inch low-frequency cone driver and a 1-inch exit compression driver on a Wave Guide Plate, ensuring a smooth, balanced audio across an operating range of 66 Hz to 20 kHz. The JF8 offers a power handling of 340 W at 8 ohms nominal impedance and delivers an impressive maximum peak output of 124 dB SPL. The unit features flexible mounting options, such as M10 threaded points and a pole mount cup, making it highly adaptable to various venue requirements. Connections are handled by dual Neutrik NL4 connectors and a 2-pin barrier strip for professional integration. Read more

Features

• Premium neodymium components deliver high output in a lightweight build.
• Rugged 15mm Baltic birch plywood enclosure endures professional demands.
• Wide 100° conical beamwidth ensures broad, even coverage.
• Exceptional power handling: 340W at 8 ohms impedance.
• Peak output capabilities reach an impressive 124 dB SPL.
• Adaptable design for both permanent installs and portable AV use.
• Dual Neutrik NL4 connectors offer secure and reliable signal input.
