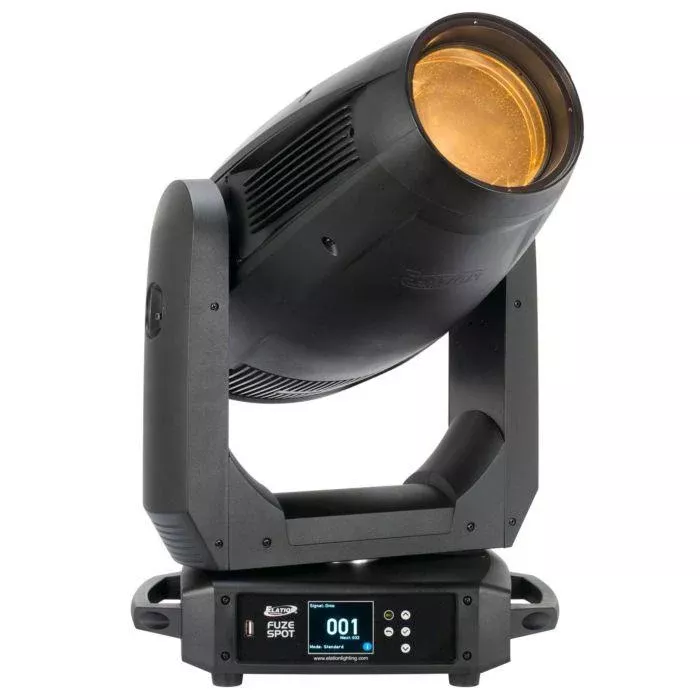

The FUZE SPOT™ is an automated LED spot fixture designed for theater, television and a wide array of other precision lighting applications.The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensures accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment plus CMY emulation provide the designer with immediate access to the impressive LED color array. The FUZE SPOT is designed for any application where an automated ellipsoidal fixture with outstanding and impactful color range and quality is required. Dual rotating gobo wheels, animation wheel, frost, prism and iris round out its comprehensive feature set in a compact, quiet and lightweight fixture. |
FeaturesExtended color RGBMA LED Engine, 92 CRITwo rotating Gobo Wheels plus Animation Wheel Iris, Prism, and Frost |
SpecificationsSOURCE 305W 6,500K RGBMA LED Engine, 92 CRI 30,000 Hour Average LED Life* *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling),Control, and Dimming. PHOTOMETRIC DATA 10,000+ Total Lumen Output EFFECTS 7° – 42° Motorized Zoom Variable Frost Filter 4 Facet Prism Motorized Iris Variable 16-bit Dimming Curve Modes High Speed Electronic Shutter and Strobe COLOR RGBMA Color Array CMY Emulation Virtual Color Correction Green/Magenta Shift Virtual Gel Swatch Book GOBOS 2x 6 Rotating / Indexing Interchangeable Glass Gobos Animation Wheel CONTROL / CONNECTIONS 4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37) 16-bit Pan, Tilt, and Dimming Control DMX Adjustable LED Frequency DMX, RDM Protocol Support 4 Button Touch Control Panel Full Color 180° Reversible LCD Menu Display 5pin DMX In/Out Neutrik powerCON TRUE1 Power In/Out With Wired Digital Communication Network SIZE / WEIGHT Length: 16.0” (407mm) Width: 10.1″ (256mm) Vertical Height: 27.4″ (698mm) Weight: 46.3 lbs. (21kg) ELECTRICAL / THERMAL AC 100-240V – 50/60Hz 466W Max Power Consumption 14°F to 113°F (-10°C to 45°C) APPROVALS / RATINGS CE | cETLus pending | IP20
Specifications and documentation subject to change without notice. |
