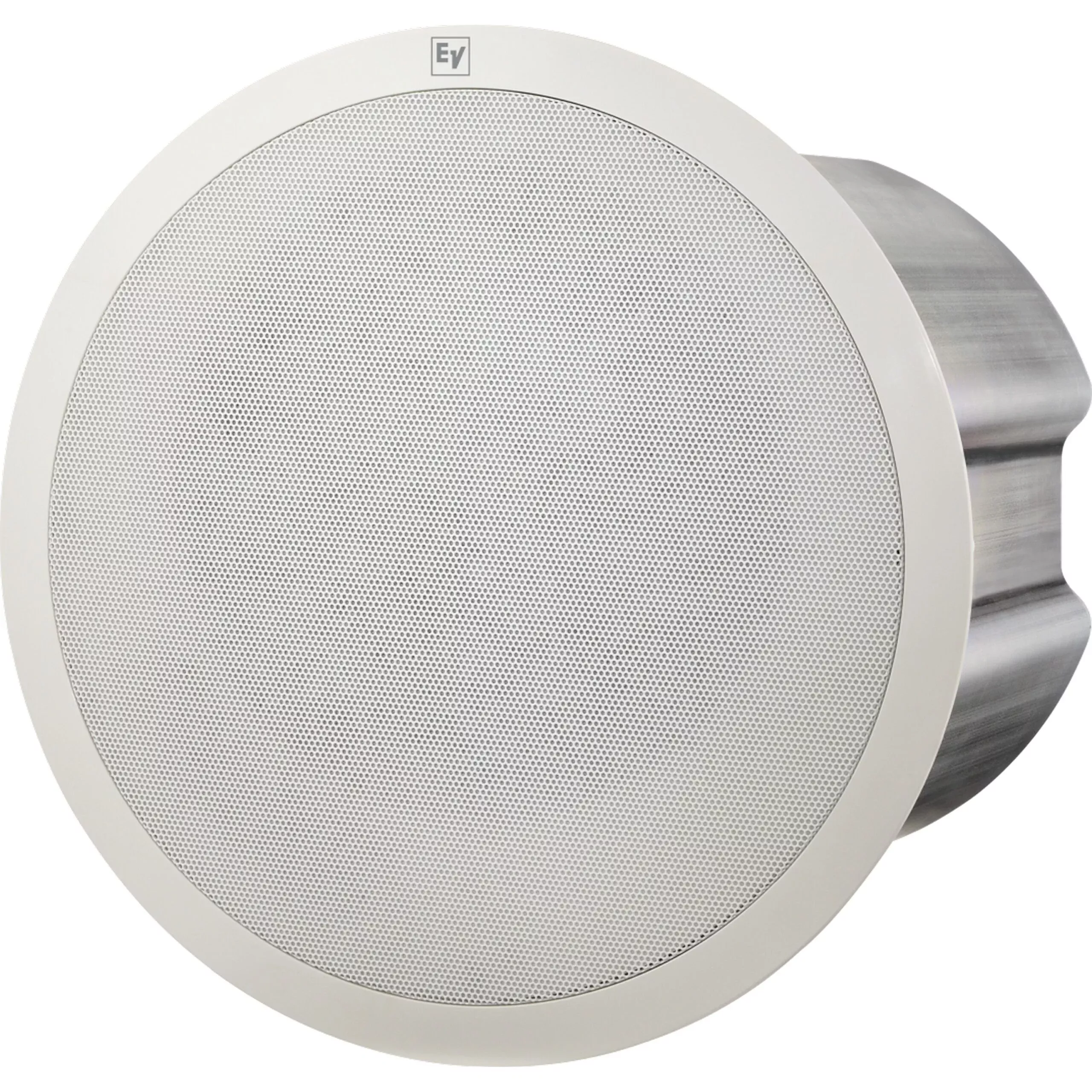

Electro-Voice EVID-PC8.2 8-Inch 2-Way Ceiling Speaker, White, Pair

Electro-Voice EVID-PC8.2 8-Inch 2-Way Ceiling Speaker, White, Pair

The PC8.2(8-inch two-way) is designed to be the most advanced ceiling speaker availabletoday, with superior performance across every detail. Each self-contained unitfeatures a dedicated compression driver for enhanced high-frequency performanceand coverage control in comparison to current EVID ceiling speaker offerings.Simplified wiring and innovative new integrated mounting hardware allows forquicker installation into a wide range of ceiling cavities and constructionformats.

The modeladds increased power handling (100 W), higher output (113 dB / 114 dB), andwider coverage angles (120 / 105) to the user-friendly installation and low-profile looksthat contractors expect from EVID products, complimenting the range as a new, high-endoption. Ideal for retail spaces, restaurants, theater and stadium concourses,shopping malls, and a wide range of applications where premium-qualitydistributed audio is required.

Key Features

• high-performanceEV-engineered compression driver. Ultra-wide HF dispersion provides extremelyeven coverage through room.
• High-excursionwoofer provides dramatic low-end frequency extension. Reinforced steel back canprovides rigid enclosure to minimize acoustic loss.
• Four-pointclamp mechanism and integrated mounting legs enable quick ceiling installation.
• Detachablepass-thru Phoenix-style signal connections simplify installation wiring. Tapselector with 8OHM / 70 V / 100 V operation.
• Fullyreinforced ABS UL-rated baffle ensures long life. Fully compliant with UL 1480,and 2043 standards.

TechnicalSpecifications

Weight Net
17.64lbs(8kg)
Height
12.76″(324mm)
Available Color
White
Connector Type
Removablelocking 4-Pin (Phoenix) 12AWG (2.5 mm) max wire size
Coverage (Nominal -6 dB)
100
Cutout Size
11.59″(294.3mm)
Diameter (Max)
12.87″(327mm)
Enclosure Material
ABS plastic(UL94V-0) baffle, steel back can
Frequency Range (-10 dB)
40 – 20kHz
Grille
Color-matchedsteel grille with fabric
HF Power Handling
200Wprogram, 100W pink noiseWatts
HF Transducer
35 mmcompression driver
Impedance
8OHM
LF Transducer
200 mm (8in)
Max. SPL/1m (calc)
108 db avg,114 pkdB
Mounting Systems
C ring, tilebridge
Power Rating
200W
Regulatory Approvals
UL1480;UL2043
Sensitivity 1 W/1 m
88dB
Shipping Weight
44.6lbs(20.23kg)
Transformer Taps (Transformer Version Only)
70V: 60W,30W, 15W, 7.5W, 8OHM, 100V: 60W, 30W, 15W, 8OHM
Weatherized
No
