Focusrite RedNet PCIeR 128×128 Dante Interface for Mac and PC

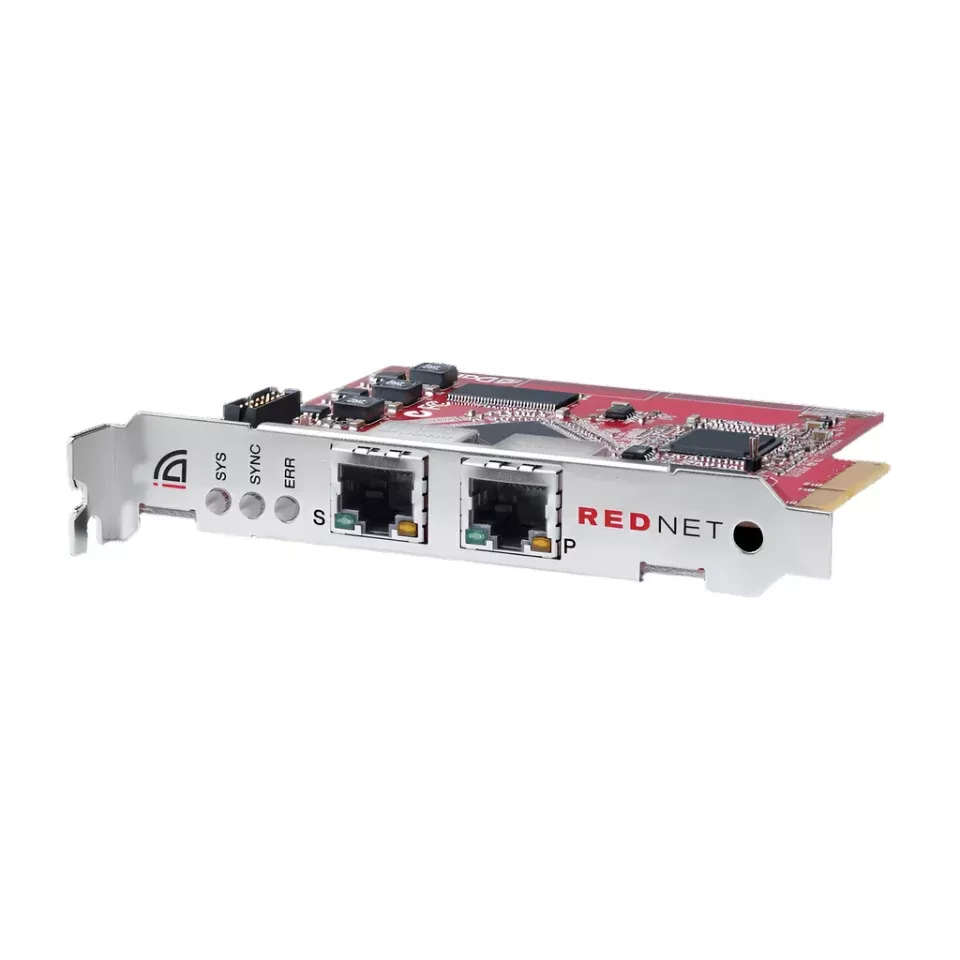

The RedNet PCIeR is an internal 4x PCIe card designed to be installed in a computer’s standard PCI Express slot or a compatible Thunderbolt expansion chassis. It acts as a bridge between the host computer and a Dante audio-over-IP network, supporting bidirectional audio connectivity via dual rear panel RJ45 Gigabit Ethernet ports. This dual-port design provides seamless, automatic network redundancy, which is crucial for mission-critical live sound, broadcast, and recording studio environments. The card operates with ASIO and Core Audio applications on Intel-based Mac and Windows systems, delivering very low latency performance for tracking and demanding post-production workflows. The interface supports high-quality 24-bit audio at sample rates up to 192 kHz. Read more

Features

• High Channel Count: Provides 128 inputs and 128 outputs at sample rates up to 96kHz, and 64 inputs and 64 outputs at 176.4kHz and 192kHz.
• Ultra-Low Latency: Delivers very low latency, with approximately 1.6ms round-trip latency when used with RedNet analogue I/O units at 96kHz.
• Network Redundancy: Features primary and secondary dual RJ45 Gigabit Ethernet ports that automatically switch to provide seamless network redundancy and maximum reliability.
• Driver Compatibility: Operates with industry-standard ASIO (Windows) and Core Audio (Mac) drivers.
• Broad Compatibility: Compatible with most modern computers featuring a standard 4-lane PCI Express card slot (note: not compatible with Apple Silicon processors).
• Remote Control and Metering: Allows for remote signal metering, control, and configuration via the RedNet Control software.
• Audio Standards Support: Fully compliant with the AES67 standard.
• Power: The card is powered over the PCIe slot, eliminating the need for an external power supply.
