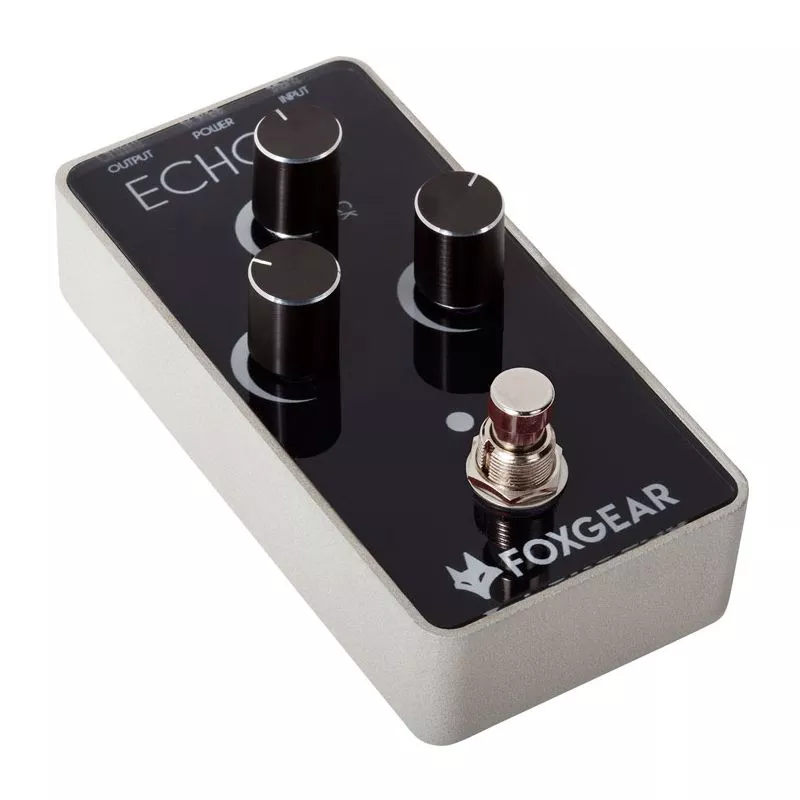

The Echoes is nothing less than a marvel amongst mere conventional delays; providing a bucket brigade of analog delay that will enrich your sound with a three-dimensional ambient tone- lush and precise repeats coupled with the best of transparency and true bypass circuitry. It can be used both in front of the amp or into your FX loop. The Echoes will always keep your tone intact and noise free.
Controls:
- FEEDBACK: Set the number of repeats
- TIME:Set the Delay time from 60ms up to 680ms.
- LEVEL: Set the effect volume
Tech Specs.
- Power In 9 to 12VDC (negative TIP)
- Consumption at 9V <100mA
- Input Impedance <=1M Ohm
- Output Impedance <=10K Ohm
- Larghezza (Width) 60mm. (2,3”)
- Lunghezza (Lenght) 120mm. (4,7”)
- Altezza (Height) 30mm. (1,1”)
- Peso (Weight) 0,2Kg. (0,4lbs)
