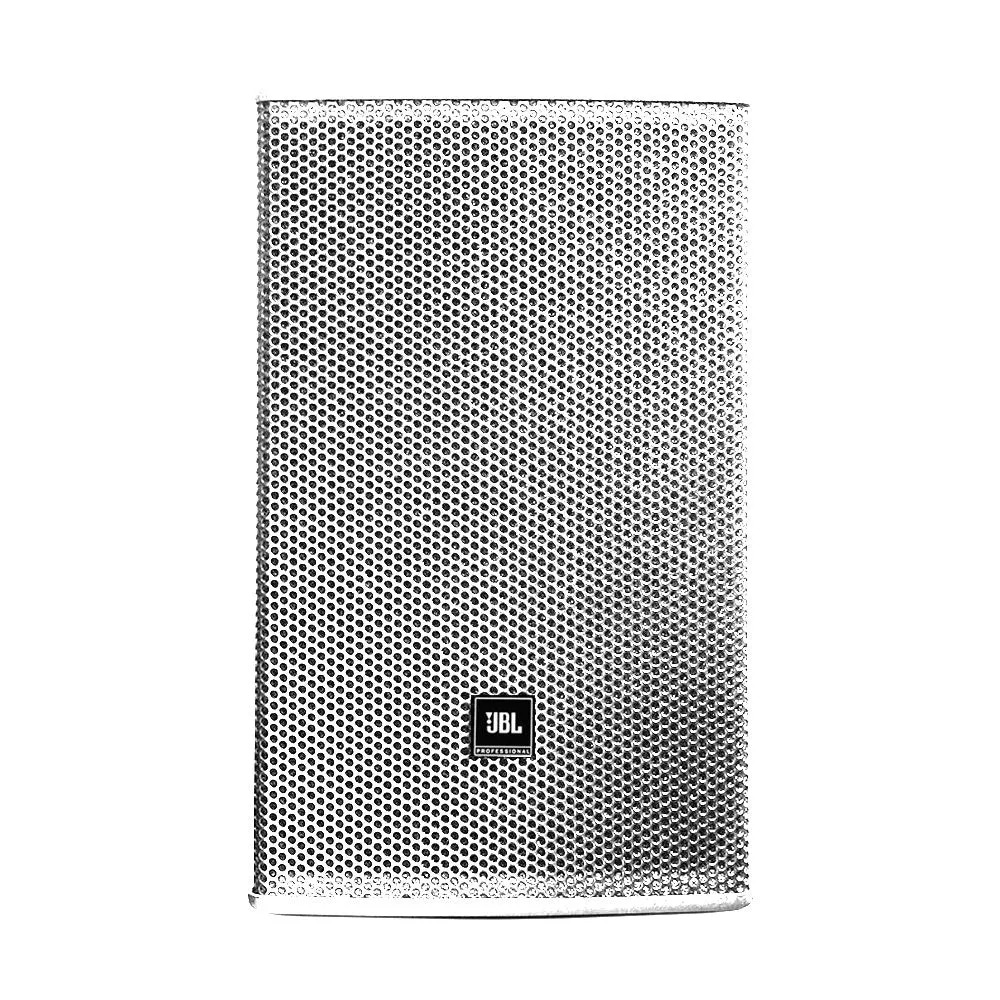

JBL AC566-WH – Compact 2-Way Install Loudspeaker (White)

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

Features:

• Robust 15mm enclosure with black textured finish
• 384 mm (15 in) LF transducer
• 60° x 60° Waveguide with a 25 mm (1 in) exit 35mm (1.5″) diaphragm compression driver
• Dual Neutrik NL4 connectors plus screw terminals
• Multiple attachment points for ultimate flexibility

Applications:

• Performing Spaces
• Clubs & Bars
• Houses of Worship
• Multi Media Spaces
• Retail & Hospitality Spaces
• Presentation Suites
• Educational Facilities
