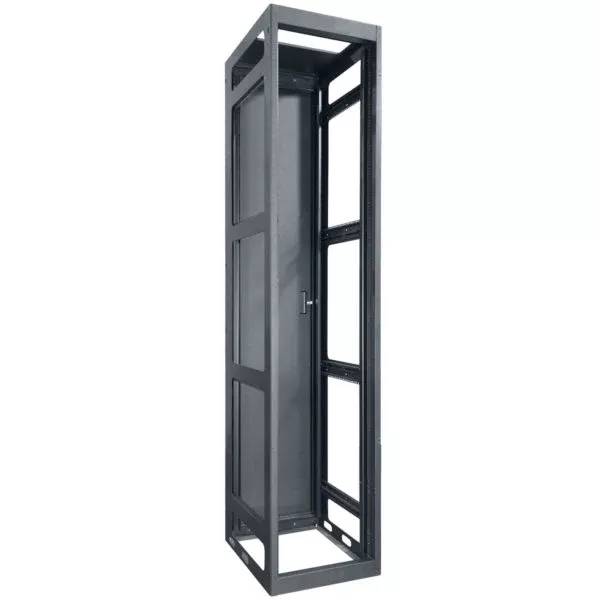

Lowell LGTR-5436

LGTR-5436: Gangable Tall Rack 54U x 36?D

SPECIFICATIONS

• Rack Space:  54U
• Height:  100.625 in.
• Width:  22.00 in.
• Depth:  36.00 in. (33.34 usable)

FEATURES

• Configurable top has 10U opening for 19 in. panels. Solid closure panels included.
• Open sides and front (optional door)
• Recessed rear door
• Two-pair fully adjustable rails tapped 10-32 with printed RU scale
• Cable Management: multiple lacing points, holes, knockout panels
• Pilot Point screws with captive washers
• Grounding stud
• Threaded inserts (for optional leg levelers)
• Beveled corners
• Black wrinkle powder epoxy finish
• Load capacity 3150 lbs.

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• UL 2416 Listed
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The EIA/TIA compliant, UL Listed (UL2416) 19″ gangable equipment rack shall be Lowell Model No. LGTR-5436, which shall measure 22″W x 36″D x 100.62″H (33.34″ useable depth x 54U useable height). The rack shall be UL Listed in the U.S. and Canada with a load capacity of 3150 lbs. Construction shall be fully welded 16-gauge steel frame with 14-gauge steel top and bottom reinforced at load-bearing junctions and finished with a black wrinkle powder epoxy coating. The rack shall include a solid steel, recessed rear door with key lock and two pairs of 11-gauge steel adjustable rails with mounting holes tapped 10-32 and rack unit increments printed on EIA spacing. The rear frame shall feature knockouts (1/2″, 3/4″, 1″, 1-1/2″) for conduit wiring plus BNC knockouts for UHF/VHF antennas. Top shall feature integral rails with mounting holes tapped 10-32 ready to accept blank panels included as shipping stiffeners or optional 19″W accessories. The base shall feature a grounding stud and provisions to add optional leg levelers.
