Lowell LPOR4-1219

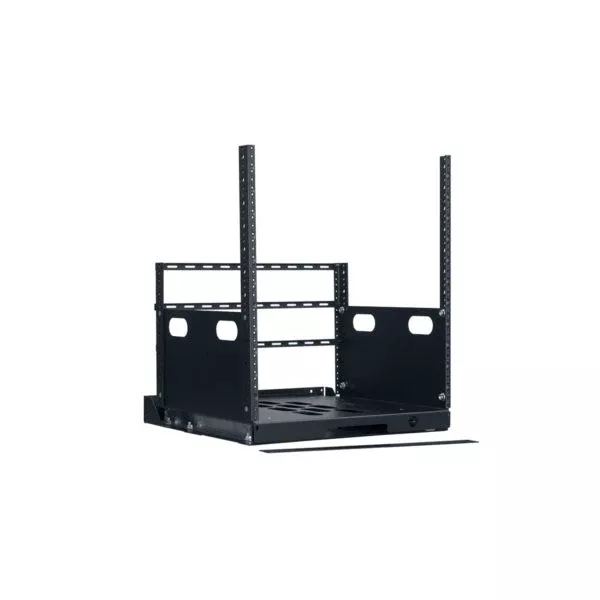

LPOR4-1219: Pull-Out Rack 12U x 19?D

Pull out rack (slide out rack) for use in cabinets or custom millwork, the top section of the rack slides forward to access mounted electronics.

SPECIFICATIONS

• Rack Space:  12U
• Height:  22.87 in.
• Width:  19.06 in.
• Depth:  19.22 in.

FEATURES

• 11-gauge steel corner post mounting rails tapped 10-32 (12U front, 7U rear)
• 14-gauge steel base
• Four bottom rail slides (for loads to 250 lbs.)
• Three cable lacing bars
• Front security panel screws into position
• Black powder epoxy finish
• Ships unassembled (two cartons)

COMPLIANCE & CERTIFICATION

• EIA/TIA compliant
• RoHS compliant
• Certified U.S. steel
• Made in Missouri, U.S.A.

A&E SPECIFICATIONS

• The rack for built-in use shall be Lowell Model No. LPOR4-1219 which shall measure 19.06”W x 19.22”D x 22.87”H and provide 12 rack units of panel space (12U front rails, 7U rear rails). The rack shall be made with certified U.S. steel and feature a 14-gauge steel base and 11-gauge steel mounting rails tapped 10-32. The base shall feature four heavy duty rails which shall allow the rack to slide forward while supporting a load up to 250 lbs. The rack shall include three cable lacing bars in the rear and a front security panel which shall mount with screws to deter slide-out access to equipment as needed for security. The rack shall have a black powder epoxy finish and ship unassembled in two cartons.
