Home » Shop » hot sale » Lowell LRR-3815

Lowell LRR-3815

Original price was: $63.05.Current price is: $49.74.

Sale!
SKU: LRR-3815 Category:
Share

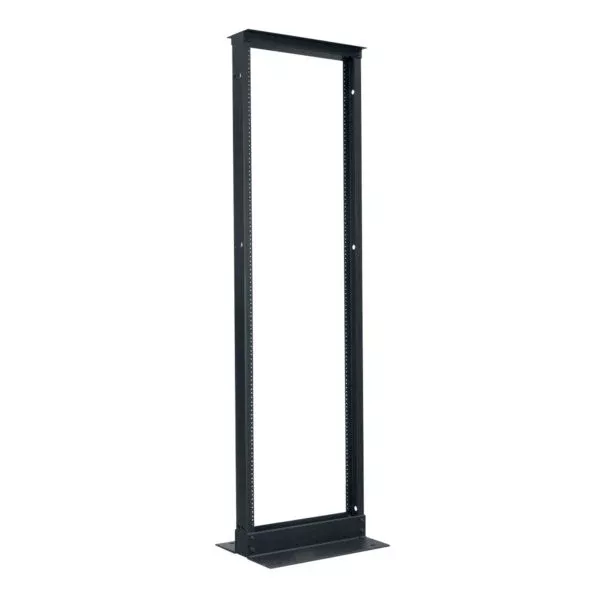

LRR-3815: Relay Rack 38U x 15?D

Two post rack provides full access to electronics, making it ideal for telecommunications, commercial sound, broadcast, data and switching applications. Ships unassembled.


SPECIFICATIONS

  • Rack Space:  38U
  • Height:  72.00 in.
  • Width:  20.25 in.
  • Depth:  15.00 in.

FEATURES

  • Steel channels tapped 10-32 (3 in. wide)
  • Two piece aluminum top and two piece base
  • Black finish
  • Four holes for anchors (not included)
  • Assembly and mounting hardware
  • Ships unassembled

COMPLIANCE & CERTIFICATION

  • EIA/TIA compliant
  • RoHS compliant
  • Certified U.S. steel
  • Made in U.S.A.

A&E SPECIFICATIONS

  • The relay rack shall be Lowell Model No. LRR-3815 which shall measure 20.25″W x 15″D (at base) x 72″H. It shall have 38 rack units of space. The rack shall ship unassembled and feature two (3″W) vertical channels of 11-gauge steel with mounting holes tapped 10-32 on E.I.A. mounting centers, a two-piece aluminum top, and a two-piece aluminum base with holes to secure to floor when specified by code. It shall include assembly and panel mounting hardware and be finished in black powder epoxy paint.
