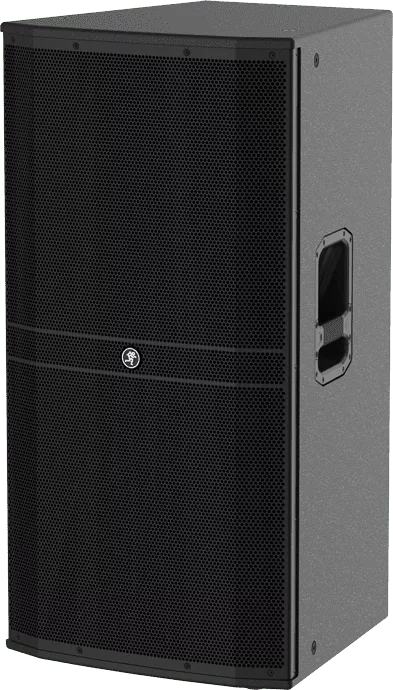

Mackie DRM315-P

DRM Professional Passive Loudspeakers

powerful
VERSATILITY

DRM Series Professional Passive Loudspeakers feature high-performance transducers in flyable, road-ready cabinets with premium-grade precision crossovers.

• State-of-the-art passive 3-way speaker
• Triple 1.4″ titanium-diaphragm compression driver ensures maximum transparency
• 6″ midrange transducer gives you enhanced punch
• 15″ high-excursion woofer delivers exceptional sensitivity, bass response, and reliability
• Precision crossover yields reference-quality sound throughout the entire frequency range
• Angled design allows for use as a stage monitor
• M10 fly points for vertical orientation
• Dual-angle pole mount yields optimal coverage and minimal reflections
• Rugged parallel speakON inputs supply secure connections
• Roadworthy, texture-coated 18mm plywood cabinet and powder-coated heavy-gauge steel grille

• Powered:No
• Power Configuration:Single Amp
• LF Driver Size:1 x 15″ High-excursion woofer
• HF Driver Size:1.4″ Titanium diaphragm
• Impedance:4 ohms
• Power Rating:500W (continuous), 1000W (program)
• Total Power:2500W (peak)
• Inputs:1 x SpeakCON
• Outputs:1 x SpeakCON
• Frequency Range:45Hz-20kHz (-10 dB)
• Frequency Response:65Hz-18kHz (±3 dB)
• Horizontal Coverage Angle:90 Degrees
• Vertical Coverage Angle:60 Degrees
• Maximum Peak SPL:130dB
• Enclosure Material:15mm Plywood construction
• Mounting Options:Pole-mount, 12 x M10 flypoints
• Height:36.5″
• Width:18.8″
• Depth:19″
• Weight:80.5 lbs.
