Palmer PAN 02 PRO Powered DI Box

PAN 02 PRO
Professional DI box active

• First-class active DI box
• Unbalanced XLR input
• 3-way attenuator (-10, -20, -30dB)
• Switchable gain (12dB)
• Max. output voltage +20 dB
• Soft ground lift

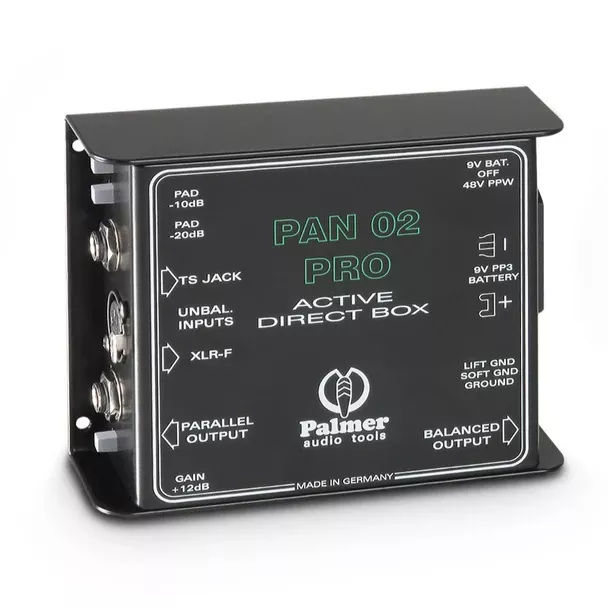

The Palmer PAN02 PRO is an active DI box with outstanding additional functions. These include an unbalanced XLR input, in addition to the 3-way attenuator -10, -20, -30 dB and a switchable gain of 12 dB, connected with a maximum output voltage of +20 dBu. The ground lift switch has a “lift” position allowing adjustments between a “soft and hard grounding” . The balanced output is achieved with a high quality transformer in the Mumetall housingthat was specially developed for this purpose. The PAN02 PRO can be powered either with a 9 V battery or 48 V phantom power. A two-colour LED indicates which source supplies the power.
