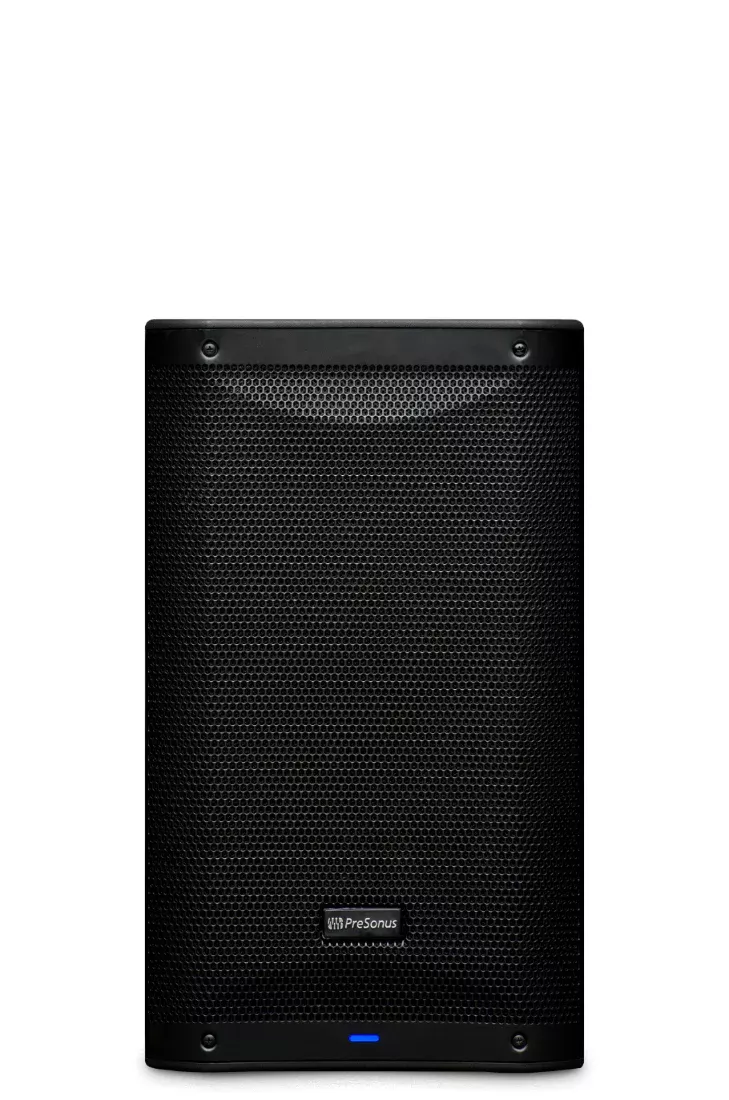

PreSonus AIR10

AIR10

AIR10: Versatile, customizable, and easy to transport.

Compact and lightweight, AIR10 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR10 gives you all the power and tools you need for both mobile and installed sound.

Features

Main Components

• Hybrid “best of both worlds” 1,200W (peak) power amp configuration:
  • Low-frequency driver: 900W, Class D amplifier
  • High-frequency driver: 300W, Class A/B amplifier
  • Maximum SPL 121 dB peak
• 1-inch, high-frequency compression driver
• 10-inch woofer with a 2-inch voice coil
• 66 Hz to 20 kHz frequency response
• 121 dB SPL (max)
• 90° x 60° (horizontal x vertical) dispersion pattern
• Onboard mixer with two combo XLR and ¼” inputs and one summed balanced output

Controls

• Easy-to-use DSP performance presets:
  • DJ — music playback
  • FOH — normal front-of-house Enhance – enhanced low end for a warmer sound
  • Monitor — optimized for floor wedge placement
  • Speech — applications where speech intelligibility is critical
• Additional presets and controls:
  • Stand — for mounting on a pole or tripod
  • Bracket — for wall-mount applications
  • Suspend — for suspended applications

Convenience Features

• Multi-angle enclosure for mains or monitor-wedge applications
• Comfortable ergonomic handle
• 35 mm pole socket with 7.5? downward tilt
• M10 rigging points for suspended installation
• Defeatable front-panel LED
• Rugged plastic enclosure
• Tour-grade, 1.2 mm steel grille

Computer system requirements:
Below are the minimum computer-system requirements for StudioLive 16.0.2 USB.

macOS®
macOS version 10.13 or later
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates)
Available USB port
Windows®
Windows 10 or later (64-Bit Only)
200 MB storage space and 8 GB RAM for Universal Control (required for firmware updates and low-latency ASIO support)
Available USB port
The above are the hardware system requirements for this product.
DAW software and Operating System requirements vary.

Click here for Studio One’s system requirements.
VST Compatible Logo ASIO Compatible Logo

VST is a registered trademark of Steinberg Media Technologies GmbH
ASIO is a trademark and software of Steinberg Media Technologies GmbH
USB-C® is a registered trademark of USB Implementers Forum
All other trademarks are property of their respective holders
Technical Specifications
Microphone Preamp
Type XLR Female, Balanced
Frequency Response to Direct Output (at unity gain) 20 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Output (at unity gain) 20 Hz-20 kHz, ±0.5 dBu
Input Impedance (Balanced) 1 k?
THD to Direct Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz–20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) 0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
EIN to Direct Output +125 dB unwtd, +130 dB A-wtd
S/N Ratio to Direct Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -102 dB
S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) -95 dB
Common Mode Rejection Ratio (1 kHz at unity gain) +65 dB
Gain Control Range (± 1 dB) -16 dB to +67 dB
Maximum Input Level (unity gain) +16 dBu
Phantom Power (± 2 VDC) +48 VDC
Line Inputs, Balanced
Type ¼” TRS Female, balanced mono
Frequency Response to Direct Outputs (at unity gain) 10 Hz-20 kHz, 0 / -0.5 dBu
Frequency Response to Main Outputs (at unity gain) 20 Hz-20 kHz, 0/-0.5 dBu
Input Impedance 10 k?
THD to Direct Output (1 kHz at unity gain) <0.0007%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
THD to Main Output (1 kHz at unity gain) <0.005%, +4 dBu, 20 Hz-20 kHz, unity gain, unwtd
S/N Ratio to Direct Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -105 dB
S/N Ratio to Main Output (Ref = +4 dBu, 20 kHz BW, unity gain, A-wtd) -95 dB
Gain Control Range (± 1 dB) -20 dB to +20 dB
Maximum Input level (unity gain) +22 dBu
Line Inputs, Unbalanced
Type RCA Female, unbalanced (stereo pair)
Maximum Input Level +22 dBu
Main Outputs
Type XLR Male, balanced (stereo pair); ¼” TRS Female, balanced (stereo pair)
Rated Output Level +24 dBu
Output Impedance 100?
Aux Outputs
Type ¼” TRS Female, balanced (mono)
Rated Output Level +18 dBu
Output Impedance 100?
Monitor Outputs
Type ¼” TRS Female, balanced (stereo pair)
Rated Output Level z +18 dBu
Output Impedance 100?
System Crosstalk
Input to Output (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -90 dBu
Adjacent Channels (Ref = +4 dBu, 20 Hz-20 kHz, unwtd) -87 dBu
Noise Gate (Expander)
Threshold Range -84 dB to 0 dB
Attack Time Adaptive (0.2 – 2.5 ms)
Release Time 70 ms
Expander Attenuation Range 2:1
Compressor
Threshold Range -56 dB to 0 dB
Ratio 1:1 to 14:1
Response Time (Attack/Release 0.2 ms / 1.0s (“Tight”) to 180 ms / 1.0s (“Smooth”)
Auto Attack and Release Attack = 10 ms, Release = 150 ms
Curve Types hard and soft knee
EQ
Type 2nd-order shelving filter (Q = 0.55)
Low (Low-pass or Bandpass) 36 to 465 Hz, ±15 dB
Mid 260 Hz to 3.5 kHz, ±15 dB
High (High-pass or Bandpass) 1.4 kHz to 18 kHz, ±15 dB
Digital Audio
Host Interface USB 2.0
ADC Dynamic Range (A-wtd, 48 kHz) 118 dB
DAC Dynamic Range (A-wtd, 48 kHz) 118 dB
Internal Processing 32-bit, floating point
Sampling Rate 44.1, 48 kHz
A/D/A Bit Depth 24 bits
Reference Level for 0 dBFS +18 dBu
Clock
Jitter <20 ps rms (20 Hz – 20 kHz)
Jitter Attenuation>60 dB (1 ns in ? 1 ps out)
Power
Connector IEC
Input-Voltage Range 100 to 240 VAC (factory-configured for country of destination)
Power Requirements (continuous) 100W
Physical
Length 15.56 inches (397 mm)
Width 16 inches (406 mm)
Maximum Height 5.5 inches (140 mm)
Weight 20 lbs.
As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.
