PreSonus Studio 1824c

Original price was: $88.00.Current price is: $57.92.

Sale!
SKU: STUDIO-1824C Category:
Share

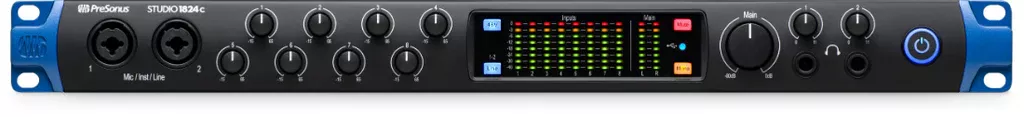

Studio 1824c

  • 24-bit/192 kHz, USB-C™ 18×20 1U rack-mounted audio interface (8×8 at 192 kHz)
  • 2 mic/instrument/line inputs and 6 mic/line inputs all with XMAX Class A mic preamps and +48V phantom power
  • 8 channels of ADAT Optical I/O (4 channels at 96 kHz)
  • 2 ¼” TRS balanced main outputs
  • 8 ¼” TRS balanced DC coupled line outputs
  • USB-C™ to USB-C™ and USB-C™ to USB-A cables included for compatibility with most computers
  • Studio One Artist DAW and Studio Magic Plug-in Suite included


Computer system requirements:
Below are the minimum computer-system requirements.

Mac
Mac® OS X 10.8.5 64-bit or later
Intel® i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
Windows
Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel i-series 2 GHz multicore processor (or AMD equivalent) or faster
4 GB RAM (8 GB or more recommended)
Mac and Windows Systems
USB-C™ or USB-A 2.0 port
32 GB hard disk space
PreSonus Universal Control 2.0 or higher
Monitor with 1366×768 resolution (high-dpi monitor recommended)
Multitouch-enabled monitor required for touch operation
iOS
iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2?
Android
Android™ 5.0 (Lollipop) or later
Android tablet (8-inch) with 1024×768 resolution (UC Surface)

Technical Specifications
General
Sample Rates 44.1, 48, 88.2, 96, 176.4, 192 kHz
Converter Resolution 24-bit
Converter Dynamic Range 114 dB
Converter Dynamic Range 114 dB
Microphone Inputs
Maximum Level +16 dBu, min gain
Gain Range 80 dB
Frequency Response 20 Hz – 20 kHz (unity gain)
Dynamic Range 110 dB (A-wtd, min gain)
THD + N 0.005% (1 kHz, 0dBu, unity gain)
EIN -128 dBu (A-wtd, 20 kHz BW, Rs=150?, max gain)
Input Impedance 1400?
Phantom Power 48V (>10 mA per channel)
Line Inputs
Maximum Level +21 dBu (balanced, min gain)
Gain Range 40 dB
Frequency Response 20 Hz-20 kHz (unity gain)
Dynamic Range 112 dB (A-wtd, min gain)
THD + N 0.005% (1 kHz, +18 dBu, min gain)
Input Impedance 10 k?
Instrument Inputs
Maximum Level +15 dBu (unbalanced, min gain)
Gain Range 80 dB
Frequency Response 20 Hz – 20 kHz (min gain)
Dynamic Range 112 dB (A-wtd, min gain)
THD + N 0.020% (1 kHz, +10 dBu, min gain)
Input Impedance 1M ?
Main Outputs
Type ¼” TRS female, DC Coupled
Maximum Level +18 dBu, balanced
Frequency Response 20Hz – 20kHz (unity gain)
Dynamic Range 108 dB (A-wtd, unity gain)
THD + N 0.004% (1 kHz, -1 dBFS, unity gain)
Line Outputs
Type ¼” TRS female, DC coupled
Maximum Level +18 dBu, balanced
Frequency Response 20 Hz – 20 kHz
Dynamic Range 108 dB (A-wtd, -60 dBFS)
THD + N 0.004% (1 kHz, -1 dBFS, unity gain)
Headphone Outputs
Maximum Power 150 mW/channel (60? load)
Frequency Response 20 Hz – 20 kHz (unity gain)
Dynamic Range 103 dB (A-weighted, 1 kHz, unity gain)
THD + N 0.250% (1 kHz, 150 mW, unity gain)
Impedance Working Range 32? to 600?
Physical
Height 1.75″ (44 mm)
Width 19″ (483 mm)
Depth 5.5″ (140 mm)
Weight 4.8 lbs (2.2 kg)
