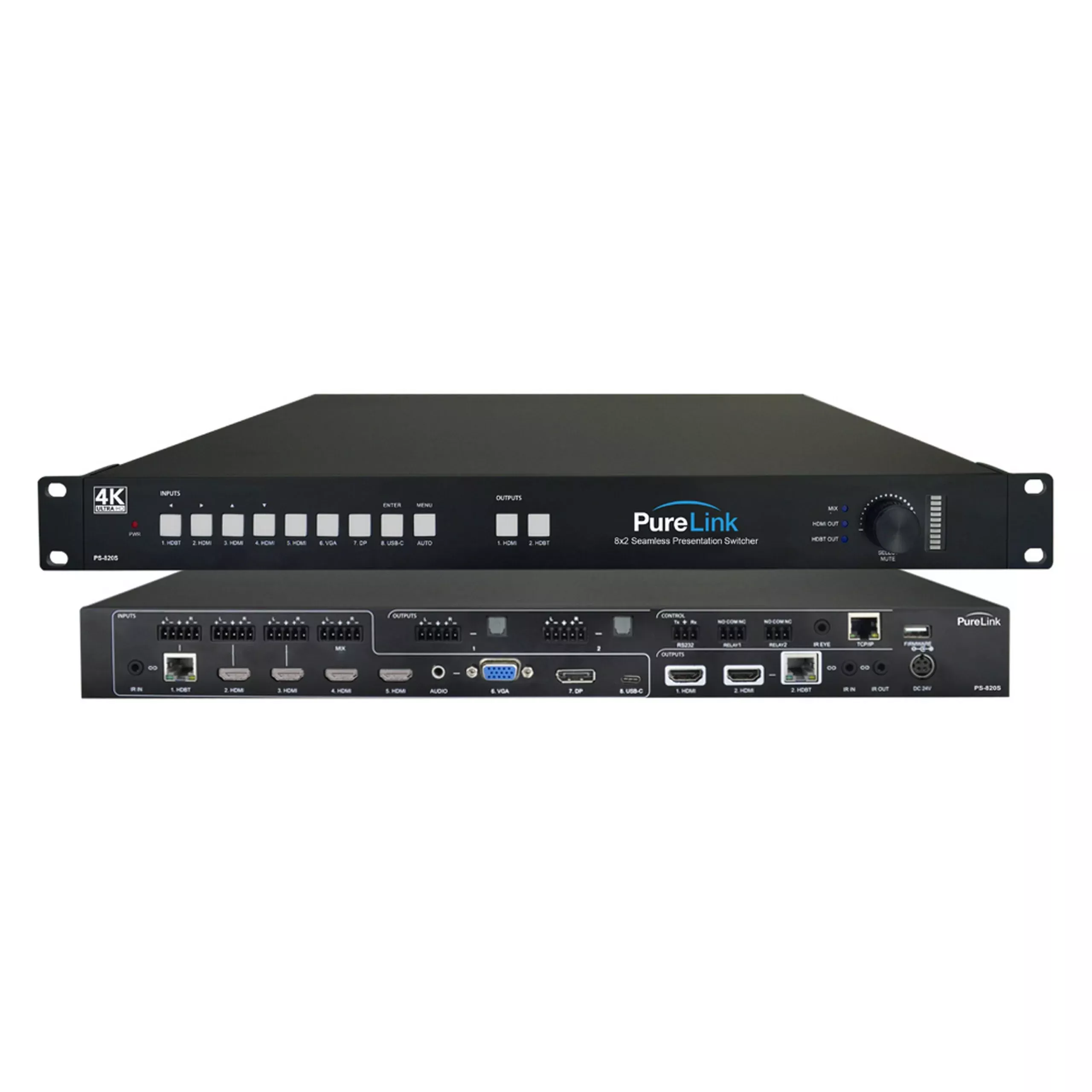

PureLink PS-820S 8 x 2 4K/60 Seamless Presentation Switcher

PureLink PS-820S 8 x 2 4K/60 Seamless Presentation Switcher

The HDTools PS-820S is an 8×2 seamless presentation switcherwith 18 Gbps support and true 4K/60 @ 4:4:4 instant switching and individualvideo scaling for each output buss. The PS-820S features flexible input optionsincluding HDMI, HDBaseT, DisplayPort, and USB-C, as well as balanced audioembedding and audio mixing via S/PDIF. Together with convenient control optionsincluding relay control, the PS-820S provides a feature-rich solution forconference rooms, home theater, broadcast studios, hotel AV, auditoriums, andstaging/rental environments that require seamless 4K/60 video and audiodistribution.

Key Features

• 4K@60Hz 4:4:4 support with Don’t Blink Switching Technology
• (8) inputs including HDBaseT, HDMI, DisplayPort, and USB-C
• Audio embedding and mixing with volume control via balancedaudio inputs
• HDCP 2.2 compliant
• Complete EDID management for individual inputs
• CEC control
• Proprietary Precis codec for lossless video transmission
• HDBaseT Distance: 40m@4K and 70m@1080p
• Auto-switching on HDMI and HDBaseT outputs
• Audio de-embedding with volume control via balanced analogand S/PDIF audio outputs
• Local/pass-through IR and RS-232, TCP/IP, relay, CEC and OSD

Technical Specifications

Hardware
Output Signal Type(s)
Configurable via PureMedia universal output cards supportingHDMI, HDBaseT, Fiber, and 3G-SDI
Performance
Supported Distance
1080p@60Hz up to 230ft. (70m) |4K@60Hz up to 131ft. (40m)
Supported Resolutions
HDBaseT/HDMI/DP – up to 4K@60Hz 4:4:4 | VGA – up to 1920×1200,50/60Hz
Video Bandwidth
18 Gbps
Compliance
HDMI 2.0, HDCP 2.2
Control Options
RS-232, IR, LAN
Power Consumption
85W (max)
Power Supply
Input: AC100~240V, 50/60Hz | Output: 24V DC6A
Operating Temperature
14F ~ 131 F (-10C to 55 C)
Storage Temperature
-13F ~ 158 F (-25C to 70C)
Relative Humidity
10~90% non-condensing
MTBF
50,000 hours
Rack Mounting Option
Standard 19 inch rack-mountable design
Connections
Input Type(s)
(1) HDBaseT
(4) HDMI
(1) Display Port
(1) VGA
(1) USB-C
Output Type(s)
(2) HDMI
(1) HDBaseT
Audio Input Type(s)
(1) External balanced audio (L+R) for 1-HDBT input port
(1) External balanced audio (L+R) for 2-HDBT input port
(1) External balanced audio (L+R) for 3-HDBT input port
(1) Stereo auxiliary audio for 6-VGA input port
(1) Balanced MIX audio
Audio Output Type(s)
(1) Balanced audio (L+R) for 1-HDMI output audiode-embedding
(1) Digital SPDIF audio (L+R) for 1-HDMI output audiode-embedding
(1) Balanced audio (L+R) for 2-HDBT output audiode-embedding
(1) Digital SPDIF audio (L+R) for 2-HDBT output audiode-embedding
Control Ports
(1) RS232 , (2) Relay
(1) IR Eye , (2) IR in
(1) IR out , (1) TCP/IP
(1) Firmware
Enclosure
Enclosure Type
All metal, black powder coat finish
Rack Mounting Option
Standard 19 inch rack-mountable design
Product Dimensions
17.2 x 1.7 x 14.0 in. (WxHxD)
Product Weight
6.33 lbs.
