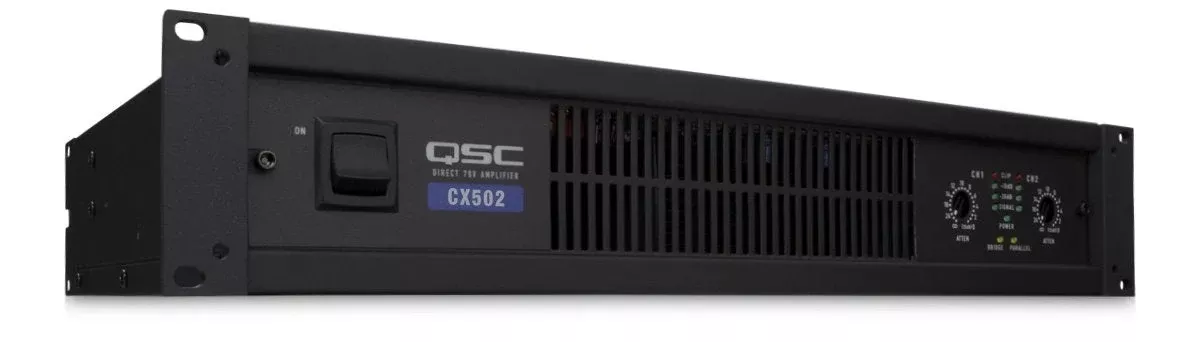

QSC CX502

CX502

2-Channel Low-Z Power Amplifier

Features

• Exclusive PowerLight switch-mode power supply technology for high performance and compact size
• Custom integrated security cover for tamper proof installations
• Variable speed fan for low noise
• 1-dB detented gain controls for fast and accurate gain settings
• Active inrush limiting eliminates AC inrush current, removing the need for expensive power sequencers
• XLR and detachable Euro style input connectors
• HD15 DataPort connector for Q-SYS networked control and monitoring
• Dip switch control for clip limiters, high pass filters, bridge mono and parallel operation
• Selectable high pass filters protect speakers and prevent speaker transformer saturation with minimal effect on program material (33 Hz or 75 Hz)
• Comprehensive front panel indicators including signal, clip, protect and QSC’s exclusive bridge mono and parallel input LEDs
• Barrier strip output connector
• Comprehensive protection circuitry including DC, infrasonic, thermal overload and short circuit protection
• Optional external transformer accessory pack for isolated 25-, 70-, and 100-volt outputs
• Compact size – only 2 rack units high and 14″ deep for reduced rack cost and floor space
• Lightweight – weighs only 21 pounds (9.5 kg) for easier racking and shipping
• 3-year warranty plus optional 3-year extended service contract
• All CX Series amplifiers meet the European Union’s 2006 RoHS directive to restrict the use of hazardous materials used in electronic devices.
