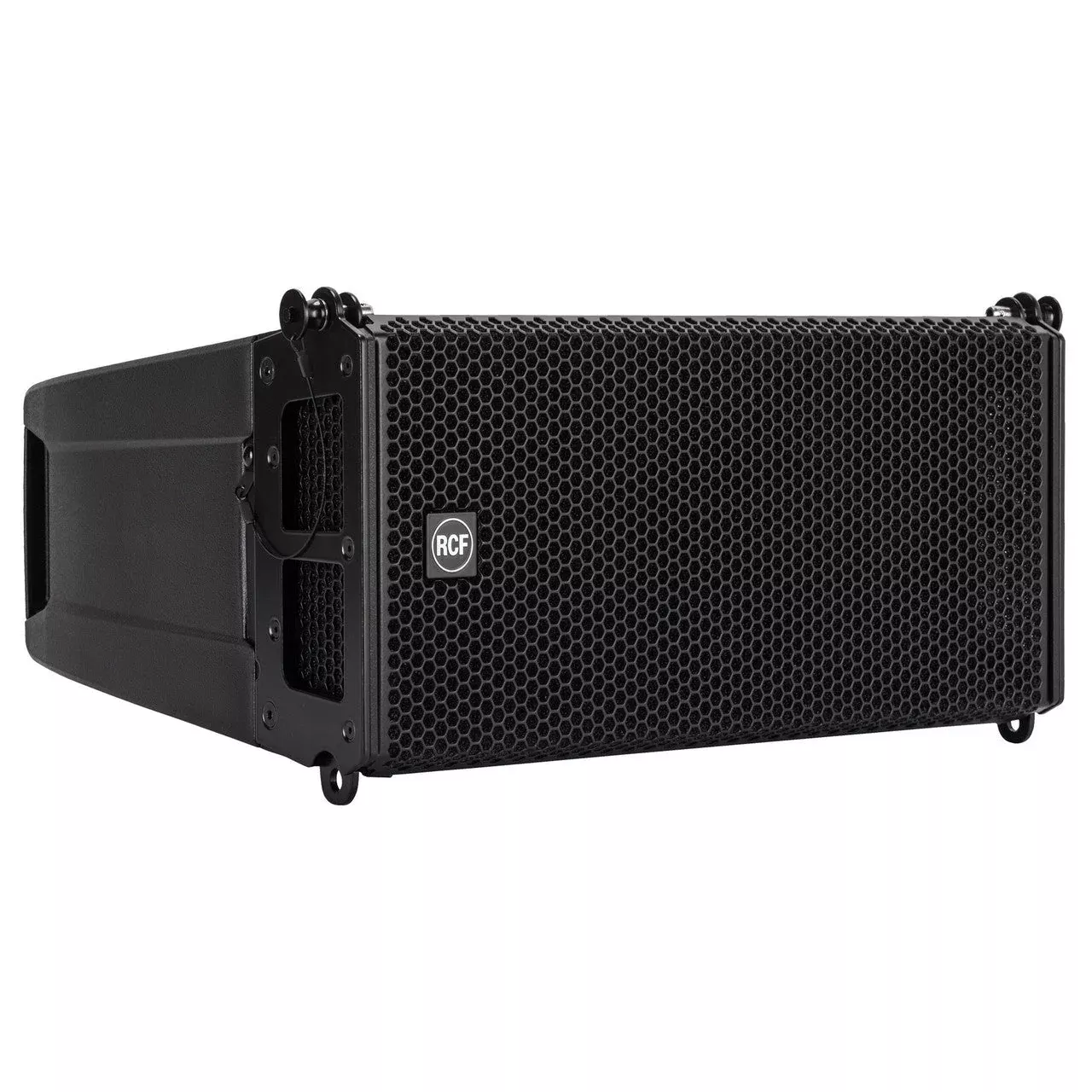

RCF HDL6-A 1400 Watt Active 2 Way Line Array Module Speaker Black

RCF HDL6-A 1400 Watt Active 2 Way Line Array Module Speaker Black

The HDL6-Ais the ideal choice when line array performance is needed and a fast and easyset-up a must. A 1400 W 2-channel class-D amplifier powers the system. Apowerful DSP processes the sound including crossover, phase correction,limiting and protection. The system features state-of-the-art RCF transducerstwo powerful 6.0” woofers for a solid bass reproduction plus a high powered1.7” voice coil compression driver mounted on a precise 100 x 10 waveguidedelivers vocal clarity with high definition and an incredible dynamic.

Key Features

• 1400 W,two-way amplification
• 131 dB maxSPL
• 1.7″voice coil neodymium compression driver
• 2 x highpower neodymium 6.0″woofers
• 48 kHz, 32bit floating point DSP processing
• Symmetricaldesign
• Extremelylow weight
• FiRPHASEprocessing

TechnicalSpecifications

Acoustical specifications
FREQUENCY RESPONSE
65 Hz20000 Hz
MAX SPL @ 1M
131 dB
HORIZONTAL COVERAGE ANGLE
100
VERTICAL COVERAGE ANGLE
10
Transducers
COMPRESSION DRIVER
1.0” neo,1.75” v.c
WOOFER
2 x 6.0”neo, 2.0” v.c
Input/Output section
INPUT SIGNAL
bal/unbal
INPUT CONNECTORS
XLR
OUTPUT CONNECTORS
XLR
INPUT SENSITIVITY
+4 dBu
Processor section
CROSSOVER FREQUENCIES
900 Hz
PROTECTIONS
Thermal, RMS
LIMITER
Soft Limiter
CONTROLS
HFcorrection
Power section
TOTAL POWER
1400 W Peak,700 W RMS
HIGH FREQUENCIES
400 W Peak,200 W RMS
LOW FREQUENCIES
1000 W Peak,500 W RMS
COOLING
Convection
CONNECTIONS
PowerconIN/OUT
Standard compliance
CE MARKING
Yes
Physical specifications
CABINET/CASE MATERIAL
PP Composite
HARDWARE
Array fittings
HANDLES
2 Back
GRILLE
Steel
COLOR
Black
Size
HEIGHT
237 mm /9.33 inches
WIDTH
470 mm /18.5 inches
DEPTH
377 mm /14.84 inches
WEIGHT
11.6 kg /25.57 lbs
Shipping informations
PACKAGE HEIGHT
260 mm /10.24 inches
PACKAGE WIDTH
550 mm /21.65 inches
PACKAGE DEPTH
425 mm /16.73 inches
PACKAGE WEIGHT
13 kg /28.66 lbs
