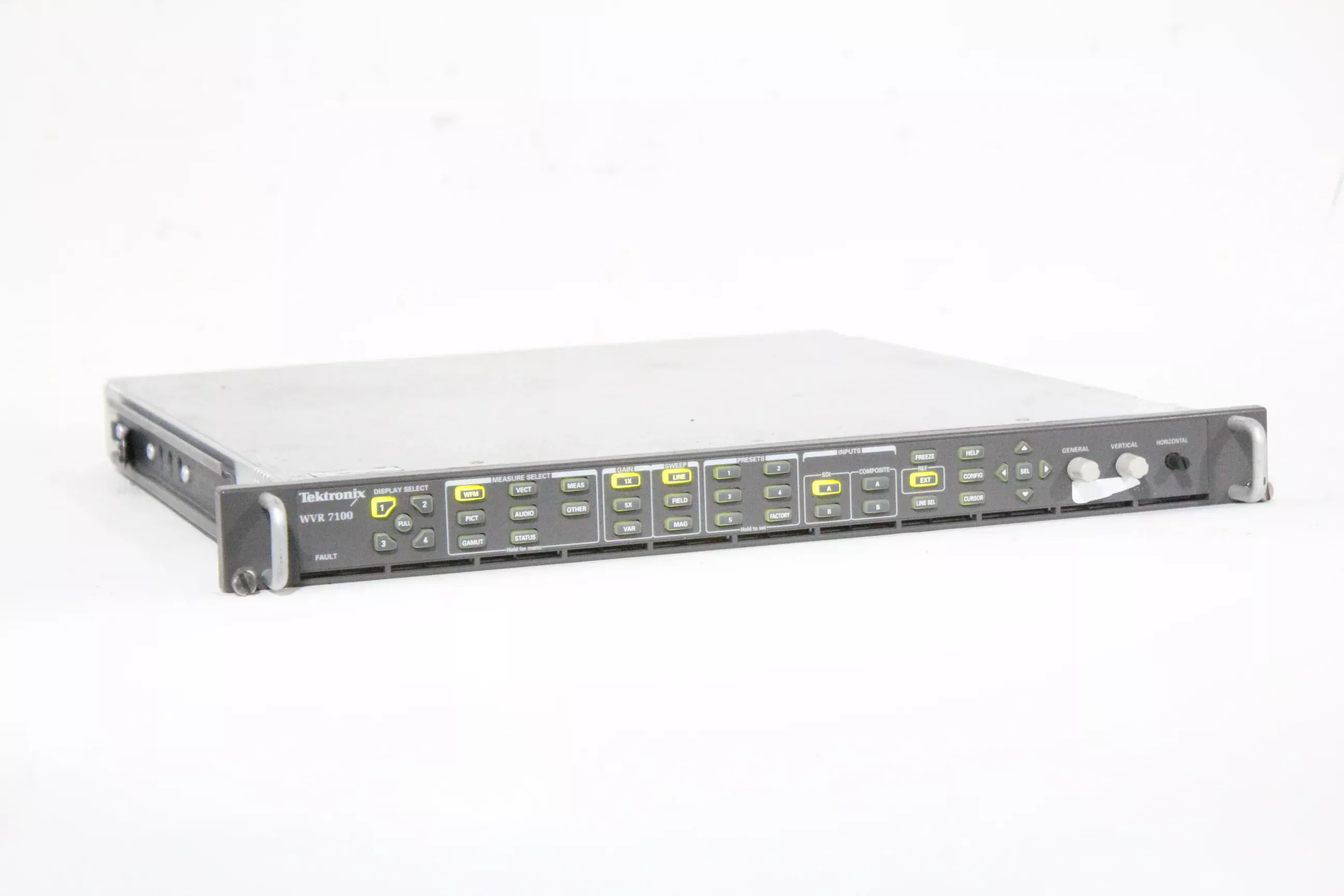

Tektronix WVR7100 HD SDI Waveform Rasterizer

The WVR7100 offers high performance monitoring and measurement for applications involving HD digital video. It combines the video and audio monitoring capabilities available on the WVR7000. It also provides optional support for Dolby audio decode and monitoring (including metadata) capabilities. WVR7100 offers two physical layer measurement options, EYE and PHY. Option EYE provides eye display, jitter readout and cable length measurement. Option PHY provides additional automated eye measurements and jitter waveform display. Read more

Features

• SD Add SD-SDI monitoringCPS Add Analog Compsite monitoringDS Digital audio monitoring in embedded and AES/EBU formatsAD Analog audio & digital audio in embedded and AES/EBU formatsDD Analog and digital audio with Dolby Digital decode & monitoring
