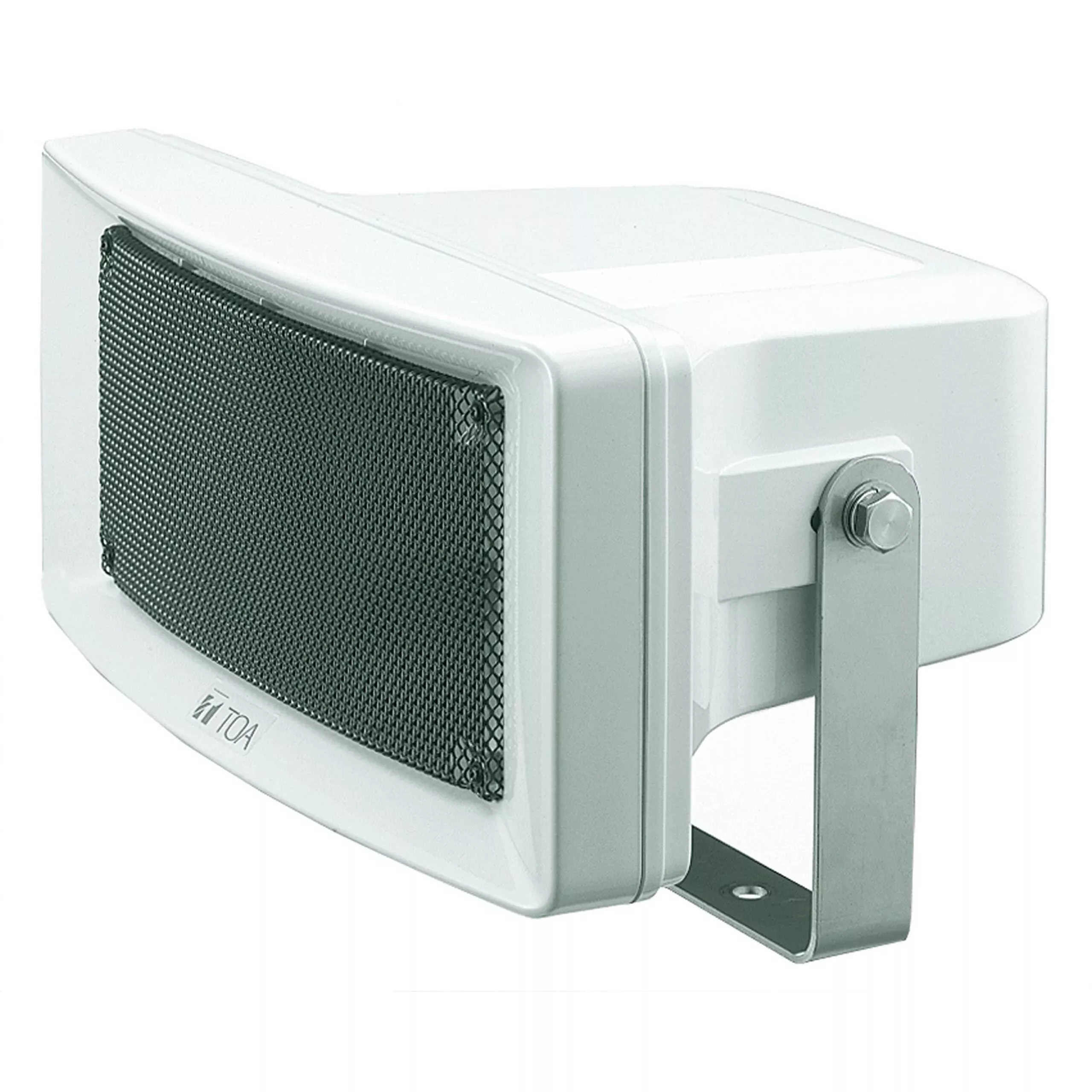

TOA Electronics CS-304 Wide Range Weatherproof Speaker

TOA Electronics CS-304 Wide Range Weatherproof Speaker

The CS-304outdoor speaker features stainless steel hardware for all-weather durability.It is designed to offer the high intelligibility of weather-resistant hornscombined with the high sound quality of dynamic speakers. The CS-304 employsthe rotary switch that facilitates impedance changes. It also employs aconstant directivity horn for clear sound output over its horizontal range of 90Degree operation.

TechnicalSpecifications

Rated Input
30 W
Rated Impedance
100 V line:330(30 W), 500(20 W), 1 k (10 W)
70 V line:170(30 W), 330(15 W), 500(10 W), 1 k (5 W)
Sensitivity
98 dB (1 W,1 m)
Frequency Response
120 15,000Hz
Speaker Component
12 cmcone-type
93 dB ormore (1 W, 1 m), 3 kHz at -45
Speaker Cord
2-corecabtyre cord with diameter of 6 mm
Dust/Water Protection
IP65
Finish
Horn, cover:ABS resin, off-white, paint
Bracket:Stainless steel
Net:Aluminum, gray, paint
Screw:Stainless steel
Dimensions
366 (W)230 (H) – 272 (D) mm
Weight
3.1 kg
