VocoPro WIRELESS MIX BASIC

VOCOPRO | WirelessMix-BASIC

All-In-One live sound / Karaoke Mixer

Always running gigs in different locations? Want to shave time off your set up, or perhaps eliminate complicated wiring configurations on a rental system? VocoPro’s new WirelessMix is the first All-In-One professional mixing solution; combining an 8 channel mixer, 4 onboard wireless microphones* and 4 stereo expansion modules*.

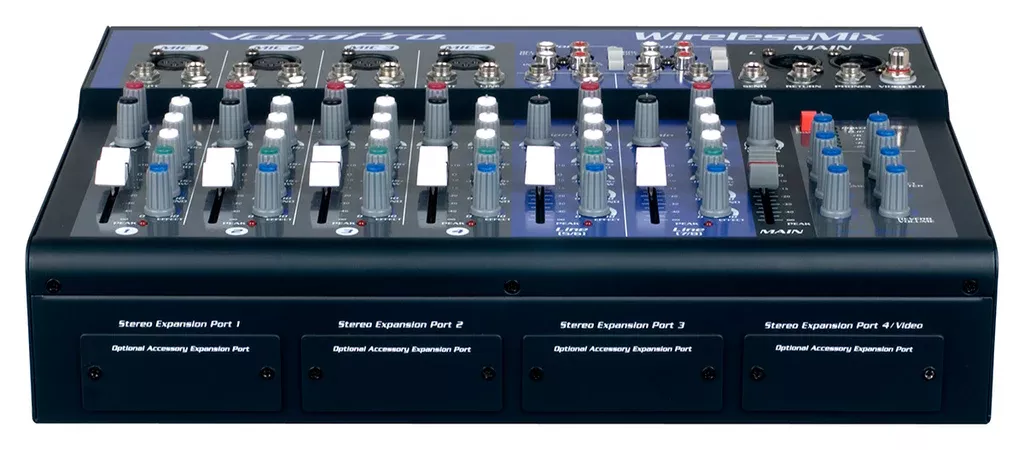

The top of the WirelessMix looks like a typical professional 8 channel mixboard, but along the back panel are 4 wireless microphone module slots. These are where the microphone receivers are installed, giving the WirelessMix the ability to support up to 8 microphones, 4 wired and 4 wireless. The front panel hosts the 4 Stereo Expansion Slots that accept any and all of our optional Stereo Expansion Modules. These allow the WirelessMix to stream programmed music from our BT-1 Bluetooth Receiver*, play or record MP3 files with the SDR-4*, or play back MP3+G karaoke files to get both audio and video with the DKP-3*. Then, mixed audio can be wirelessly sent to a speaker system or set of powered speakers with the Air-Net 2* Audio Transmitter & Receiver.

You can say goodbye to all the complicated wiring and save space for additional audio equipment with the first All-In-One solution for professional PA mixing, the WirelessMix by VocoPro!

• 8 Input Channels Available; each with dedicated Tone, Pan & Effect Controls
• 4 XLR Microphone Inputs with +48 Phantom Power Toggle and Mic Inserts
• 4 Mono Line Inputs for either Microphones or Instruments
• Stereo Inputs Available: 2x L/R 1/4″ Mono (TS), 2x RCA
• Stereo Outputs Available: 2x RCA-Record, 1x L/R XLR-Main
• On-Board DSP Microphone Effects: Echo, Repeat, Delay, Reverb & Hiss Filter
• Vocal Cancel Feature for Multiplexed Karaoke Tracks
• Microphone Module Slots Supports up to 4 onboard Wireless Microphone Receiver Modules*: UMH
• Stereo Expansion Slots Available for Added Input/Recording Capability with our optional Stereo Expansion Modules*: SDR-4, DKP-3, Air-Net 2 & BT-1

Accessories: Power Adapter

*Optional Components; See Package Contents for Details
