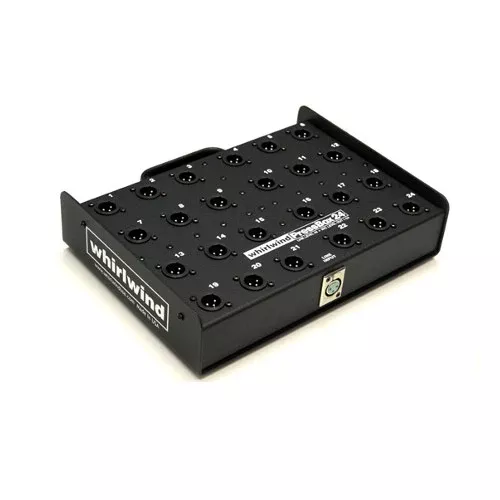

Whirlwind PB24 Passive Press Box (1 Input/24 Output)

The PB Series expands mic outputs when used with line outs on PRESSPOWER 2 or PRESSMITE active press boxes or any time a line level feed is available.

These passive units distribute one line level input to multiple mic level outputs*. Each output is transformer isolated, provides excellent interchannel isolation and is ground lifted to help eliminate noise problems. Whirlwind TRSP-2F transformers are used throughout.

The boxes are constructed with rugged, cold-rolled steel. Available with 6, 12, or 24 outputs.

• Input Impedance: 2k Ohms
• Output Impedance: 150 Ohms
• Operating Level: 0 dB input = -43 dB output
• Channel-to-channel Isolation:
• 65 dB between vertically adjacent channel pairs, 107 dB between non-vertically adjacent pairs

* Line level signal MUST be provided into these passive press boxes. A microphone directly into the input will not provide enough signal level for proper operation.
