Home » Shop » Speakers » Yorkville NX750P-2 Powered

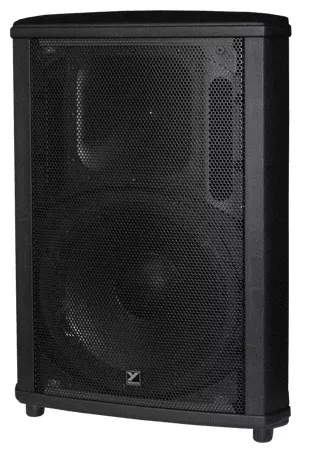

Yorkville NX750P-2 Powered

Original price was: $611.40.Current price is: $428.96.

Sale!
SKU: NX750P-2 Category:
Share


15-inch / 1.5-inch – 750 watts

The NX750P-2 represents the culmination of all Yorkville’s research and development in molded technology to this point. The injection molded, internally multi-fin-braced enclosure supports a high-performance 15″ high-powered woofer and rotatable 80° x 50° custom ABS waveguide horn, all protected by a perforated metal grill. A rugged carrying handle, speaker stand socket and reinforced threaded flypoints are also built in.


Features

  • Integrated 1600 Watt Amplifier Peak (750 Watts Program)
  • Max SPL 133dB Peak (127dB Continuous)
  • Ultra-light injection molded Polypropylene construction
  • Dual purpose full range and wedge monitor format enclosure
  • Ultra-clear reproduction throughout bandwidth
  • Lightweight, high efficiency, high tech Bi-amped power module
  • Proven TX style processing and component protection
  • +6dB/-infinity input trim control for individual cabinet level adjustment
  • XLR and TRS inputs / outputs for easy connection and looping
  • Multi-input source mixer for direct inputs
  • Direct microphone input with level control
  • Two-way overall EQ controls
  • High quality 1.5″ High Frequency driver
  • Rotatable 80° x 50° horn
  • Next generation woofer / driver / horn technology
  • Integrated flying hardware (1/4-20 threaded holes)
  • Tough, full length metal grille
  • Recessed Mixer panel
  • Made in Canada


Specifications

System Type 2-Way
Active or Passive Active
Program Power (Watts) 750 Watts (1600 Watts Peak)
Biampable Self Powered
Max SPL (dB) 133dB Peak (127dB Continuous)
Frequency Response (Hz +/- 3dB) 50 – 26k
Crossover Frequency (Hz) 1400
Driver Configuration 15-inch / 1.5-inch
HF Driver(s) 1.5-inch Polyester voicecoil (1-inch Throat)
HF Dispersion (°H x °V) 80 x 50 rotatable
LF Driver(s) 15-inch w/ 3-inch voicecoil
HF Amplifier Type Two Tier Class H
LF Amplifier Type Class D
Power Cable Yes
Power Switch Yes
Inputs 7
Inputs – 1/4″ Jacks 2 (line input) 2 (link in/out)
Inputs – XLR 1 (mic) 2 (line in/out)
Input Sensitivity (Vrms Sine) +4dBv / 1.23V
Mixer Controls Mixer on/off switch
Mic Gain
Line/CD Gain
Treble/Bass Tweak
Level Controls +6dB/-infinity Main Volume
EQ Controls 100Hz HP Filter (LF Rolloff)
Limiter Yes
LED Indicators Power/Clip/Limit
Other Controls / Features Side recesses for ease of lifting
Feet Yes
Bar Handles 1 (Side)
Flying Hardware 1/4-20 x 5 – 2 (Top), 2 (Bottom), 1 (Pullback)
Optional Flying Hardware NX Flyware
Pole Mount Adapter (1 3/8″-3.5cm) Yes
Enclosure Materials Injection molded Polypropylene
Grille Perforated Metal
Dimensions (DWH xbackW, inches) 15 x 22 x 32 x 9.5
Dimensions (DWH xbackW, cm) 38 x 56 x 84 x 24
Weight (lbs/kg) 62 / 28

Specifications subject to change without notice
