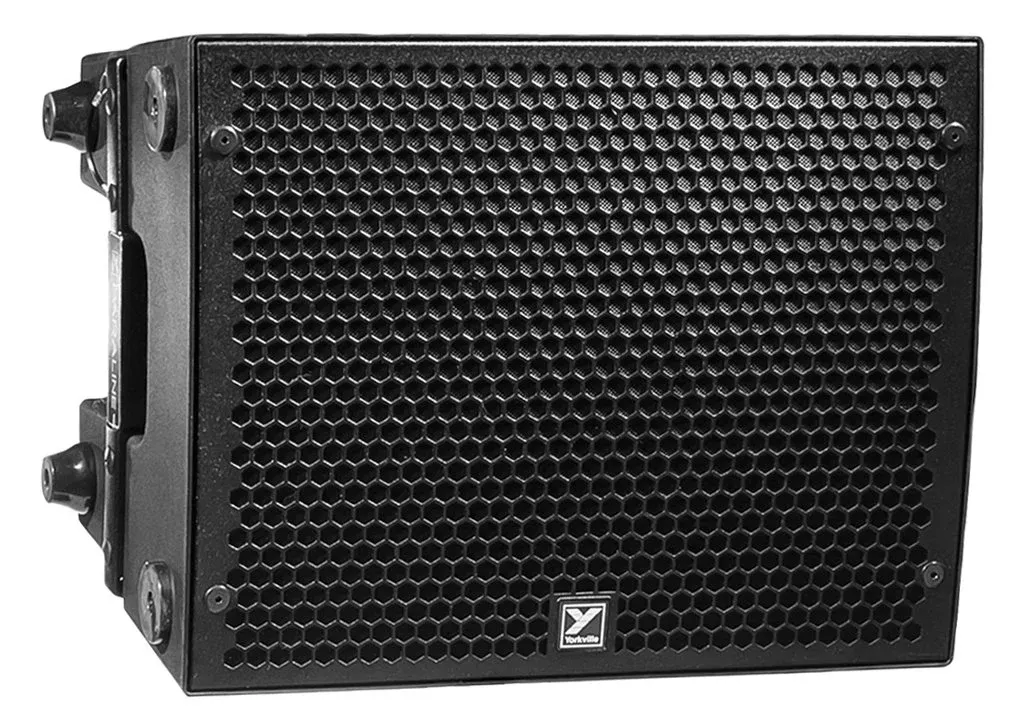

Yorkville PSA1 1200 Watts Peak Powered Compact Array Loudspeaker, Black

Yorkville PSA1 1200 Watts Peak Powered Compact Array Loudspeaker, Black

Two BMS1.75-inch compression drivers mounted to the patented Paraline lens delivers afocused 15-degree vertical dispersion and wide 110 degree horizontal coverage.The 6-inch woofers provide a tight and ultra responsive low frequency program.

Ideal formobile PA applications in venues where access to complex trussing or roof hangsisn’t practical, the Yorkville PSA1 cabinet mounts quickly and securely on atypical speaker stand. Innovative dual position stand mount offers twopotential cabinet angles for expanded setup options. Up to two PSA1 cabinetscan be stacked safely and securely on a single traditional stand.

Key Features

• Ultra HighPerformance Compact Active PA System
• UsesPatented Paraline Horn Lens Technology
• (fromYorkville Sound’s Flagship VTC Elevation Series Vertical Array Touring Systems)
• High qualitySpeaker Components
• Focused 15deg Vertical Dispersion for Minimum Interference Between Arrayed Cabinets
• Wide 110 degHorizontal Dispersion Pattern
• ManufacturedUsing Light-weight/Strong ABS Cabinet Material
• Stacks usingStandard Speaker Stand on Integrated Dual Angle Stand Mount Adaptor
• (Maximum TwoCabinets per stand)
• InstallationHardware Available
• Up to FourPSA1 Cabinets Can Be Easily Powered on one 15 Amp Circuit
• OptionalPSA1COVER available
• Made inCanada

Technical Specifications

Active or Passive
Active
Program Power (Watts)
700 Program(1200 Watts Peak)
Biampable
Biamp
Max SPL (dB)
128dB Peak(125dB Continuous)
Frequency Response (Hz +/- 3dB)
75Hz-20K
Crossover Frequency (Hz)
1.2K
Driver Configuration
2×1″,4×6″
HF Driver(s)
2×1-inchCeramic w/ 1.75-inch VoiceCoil
HF Program Power (Watts)
75 Watts(200 Watts Peak)
HF Dispersion (deg. H x deg. V)
110×15
HF Protection
Peak andAverage Limiting
LF Driver(s)
4×6-inch neowith 45mm VC
LF Program Power(Watts)
675 WattsProgram (1000 Watts Peak)
LF Impedance (Ohms)
2 Ohm Load
LF Protection
Excursion,RMS
HF Power Amplifier (Watts)
75W
HF Amplifier Type
2-Tier ClassH
LF Power Amplifier (Watts)
625W
LF Amplifier Type
Class D
Cooling Scheme
Convection
Power Cable
RemovableLocking IEC Input and Loop Thru Output
Power Switch
Yes
Power Consumption (typ/max)
135 VA / 225VA
Inputs
1 Combijack(XLR / 1/4-inch)
Input Sensitivity (Vrms Sine)
Line in 1.4at center, 0.35 at max
Level Controls
Volume
EQ Controls
HF Boostswitch, Fullrange/Sub switch
Limiter
Peak andAverage limiting on horn and woofer
LED Indicators
Power,Limit, Clip
Optional Flying Hardware
1 xPSA1RIGKIT per cabinet
1 xPSA1FRAME1 per hung
Enclosure Materials
InjectionMolded ABS
Baffle Material
InjectionMolded ABS
Covering / Finish
Paint
Optional Covering / Finishes
OptionalColours available
Dimensions (DWH xbackW, inches)
14.5 x20.5×16
Dimensions (DWH xbackW, cm)
36.8 x 52.1x 40.6
Weight (lbs/kg)
52 / 23.6
