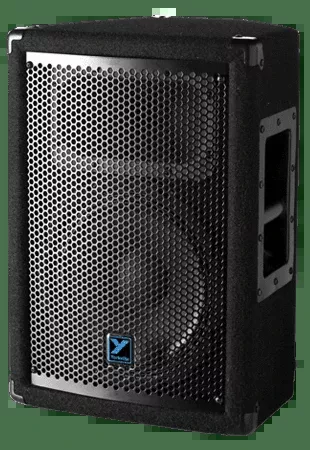

Name: Yorkville YX10 Passive
Brand: ukulelepartsmart.com
SKU: YX10
Price: 118.66 USD
Availability: InStock

10-inch / 1.4-inch – 150 watts

The YX10 delivers maximum performance in the most compact loudspeaker available in the YX Series. Engineered in North America, the YX10 benefits from Yorkville’s fifty plus years of PA enclosure design experience in the creation of this ultra compact general purpose passive loudspeaker enclosure.

Features

200 Watt Full Range Loudspeaker
10-inch Woofer
1-inch Compression Driver (1.4-inch Voicecoil)
Designed for Front-of-House or Monitor Applications
100° x 30° Injection Molded ABS Waveguide Horn
Innovative Dual Bulb CTL™ High Frequency Driver Protection
2 x Speakon™ and 2 x 1/4-inch Parallel Inputs
Integrated All Metal Speaker Standmount Adaptor
Solid 5/8-inch (15mm) Plywood Construction
YX10B-FLY (Flyable – Painted Version)

Specifications

System Type	2-Way
Active or Passive	Passive
Program Power (Watts)	150
Biampable	No
Nominal Impedance (Ohms)	8
Sensitivity (dB @1Watt/1m)	97
Max SPL (dB)	119
Frequency Response (Hz +/- 3dB)	70 – 20k
Crossover Frequency (Hz)	2k
Driver Configuration	10 inch / 1.4 inch
HF Driver(s)	1.4 inch Aluminum (1 inch Throat)
HF Horn	Injection Molded ABS
HF Dispersion (°H x °V)	100 x 30
HF Protection	CTL™
LF Driver(s)	10 inch Ceramic
LF Program Power(Watts)	150
Inputs – 1/4″ Jacks	2
Inputs – Speakon 4-pin	2
Corners	Metal
Feet	Plastic Glides
Bar Handles	1 (Side)
Flyable Version	YX10B-FLY (EYEBOLT3/8A x 4 Required)
Pole Mount Adapter (1 3/8″-3.5cm)	Yes
Enclosure Materials	15mm (5/8inch) Plywood
Grille	Custom Punched Black Perforated Metal
Covering / Finish	Black Ozite
Dimensions (DWH xbackW, inches)	12 x 13.5 x 19 x 5.75
Dimensions (DWH xbackW, cm)	30.5 x 34.3 x 48.3 x 14.6
Weight (lbs/kg)	24 / 10.9
